Ducted air conditioning remains the definitive solution for comprehensive climate control in Australian properties, offering a streamlined aesthetic and centralized temperature management. This system operates via a concealed indoor fancoil unit—typically installed within the roof cavity or under the floor—connected to an outdoor compressor. Conditioned air is distributed through a network of flexible ducting to vents strategically placed throughout the building, allowing for consistent thermal comfort in every room simultaneously.

For homeowners and developers, the primary advantage of a ducted system lies in its ability to manage large floor plans efficiently through reverse cycle technology. Unlike individual split systems that require separate hardware for each room, a ducted setup utilizes a single robust plant to heat or cool the entire structure. Modern systems integrate inverter technology, which modulates the compressor speed to match the exact heating or cooling load required, significantly reducing energy wastage compared to older fixed-speed models.

Core Components and System Architecture

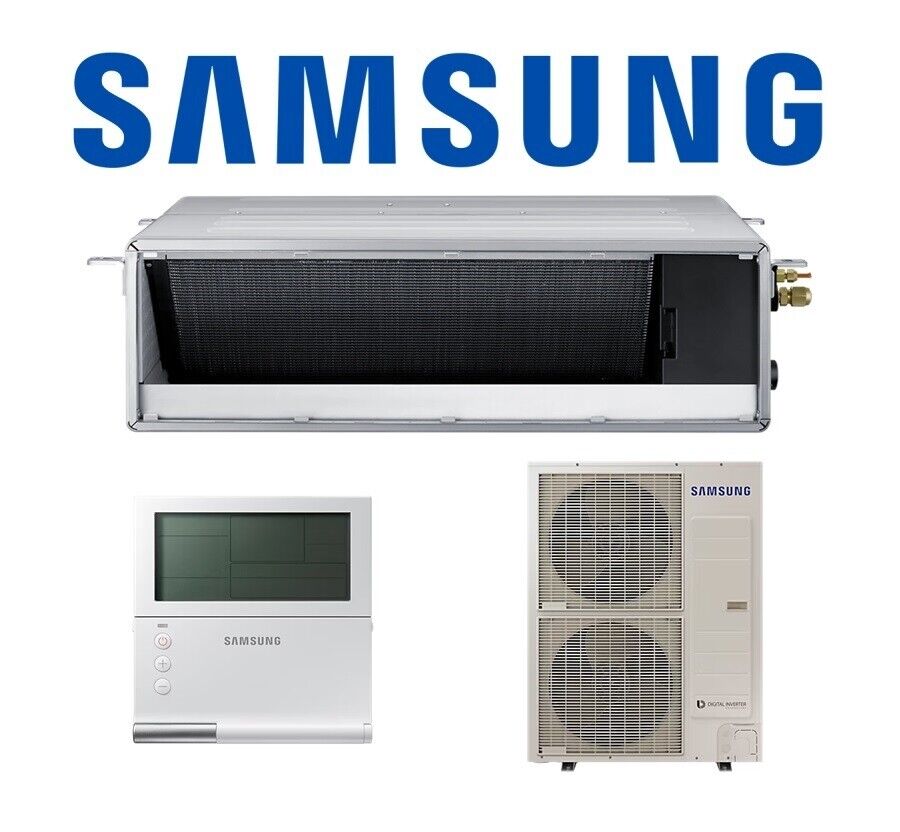

Understanding the physical configuration of a ducted system is essential for planning installation and maintenance. The system relies on three critical segments working in unison: the central plant (indoor and outdoor units), the air distribution network (ducts and dampers), and the control interface.

The indoor unit contains the heat exchanger and fan motor. It draws air from inside the home through a Return Air Grille, passes it over coils to change the temperature, and pushes it back out through the supply vents. The efficiency of this process depends heavily on the "Static Pressure" capability of the fan. High-static fans are necessary for expansive homes with long duct runs to ensure air reaches the furthest rooms with adequate velocity.

The outdoor unit houses the compressor and condenser coil. In recent years, the industry has transitioned toward R32 refrigerant. This medium transfers heat more effectively than the phased-out R410A and carries a Global Warming Potential (GWP) that is approximately 67% lower. This shift not only aligns with environmental regulations but also improves the thermal transfer efficiency of the hardware.

Zoning: The Key to Operational Efficiency

The most significant variable in the running cost of ducted air conditioning is the quality of its zoning system. Zoning divides the property into distinct areas—such as living rooms, master suites, and guest bedrooms—that can be independently controlled.

Standard systems may use a "Constant Volume" approach where airflow is simply diverted, but advanced systems utilize Variable Air Volume (VAV) technology. These systems adjust the fan speed of the indoor unit based on how many zones are open. If only two out of eight zones are active, the system ramps down the motor, consuming significantly less electricity.

According to government energy data, heating and cooling account for approximately 40% of residential energy use in Australia. Consequently, investing in a smart zoning controller that prevents cooling unoccupied rooms is the single most effective method for reducing long-term operational costs.

Comparative Analysis: Ducted vs. Split Systems

Buyers often debate between installing a full ducted solution or multiple wall-mounted split systems. The following table breaks down the critical decision factors to assist in this evaluation.

Critical Decision Factors for Buyers

When selecting a ducted package, evaluating the kilowatt (kW) capacity against the thermal properties of the building is mandatory. A heat load calculation must be performed, considering floor area, ceiling height, insulation (R-value), and window orientation. A common error is undersizing the unit to save on upfront costs. An undersized system will run at maximum capacity continuously, failing to reach the set point temperature and shortening the compressor's lifespan.

Power Supply Requirements represent another major hurdle. Larger residential systems (typically above 14kW - 16kW) often require Three-Phase power. Many older Australian homes are connected only to Single-Phase power. Upgrading the supply to accommodate a larger air conditioner adds significant cost to the project. Buyers must verify their property’s electrical infrastructure before purchasing high-capacity units.

Smart Home Integration is increasingly relevant. Modern controllers offer Wi-Fi connectivity, enabling users to adjust temperatures remotely or set schedules via smartphone apps. This feature allows for "Pre-cooling" strategies—cooling the house during the day using solar energy generation before peak tariffs kick in during the evening.

Installation and Compliance Standards

The installation of ducted air conditioning is a regulated trade in Australia. It involves refrigerant handling, which requires an ARC (Australian Refrigeration Council) license, and complex electrical work, which must be performed by a licensed electrician.

The ductwork itself must meet minimum insulation standards (typically rated R1.0 or R1.5 in humid zones) to prevent condensation ("sweating") on the outside of the ducts, which can lead to ceiling damage and mould growth. The layout of the ducting is equally critical; sharp bends or crushed ducts restrict airflow, increasing noise and reducing system performance.

Kdac Electrical Supply advises that the location of the outdoor unit must also comply with local council noise regulations. Placing a unit too close to a neighbor’s boundary line can result in compliance orders to move the equipment, a costly rectification.

Common User Questions

Can ducted air conditioning be installed in an existing two-story house?

Retrofitting into the ground floor of an existing two-story home is difficult due to the lack of ceiling space for ductwork. Often, this requires bulkheads (dropped ceilings) to conceal the ducts or the use of droppers through wardrobes. It is significantly easier to install in single-story homes or the top floor of multi-story dwellings.

What is the "spill zone" in a ducted system?

A spill zone (or constant zone) is one outlet that remains open at all times to prevent air pressure buildup inside the ductwork if all other zones are closed electronically. This protects the fan motor and duct joints. Modern systems with electronic bypass dampers eliminate the need for a permanent spill zone, allowing for total control.

How often does the system require servicing?

Commercial systems require quarterly maintenance by law. For residential systems, an annual professional service is recommended to check refrigerant levels and clean the coils. The homeowner should clean the return air filter every 3 to 6 months.

Practical Bonus Tips for Optimization

• Filter Maintenance: The Return Air Filter is the lungs of the system. A blocked filter restricts airflow, causing the system to freeze up. Check this filter before the peak of summer and winter.
• Door Gaps: Ducted systems work by pressurizing the room. Ensure there is a small gap (approx. 20mm) under internal doors. This allows air to flow out of the room and back to the central return air grille, completing the circulation loop.
• Seasonal Set Points: In summer, setting the temperature to 24°C instead of 21°C can reduce energy consumption by up to 15%. In winter, a set point of 20°C is efficient and comfortable.

Frequently Asked Questions

Is a ducted system more expensive to run than split systems?

If the entire house is cooled simultaneously, a ducted system uses more power than a single split system. However, if properly zoned and only used in occupied rooms, a ducted system is often more efficient than running 3 or 4 separate split systems simultaneously.

Does ductwork degrade over time?

Yes, flexible ducting can degrade after 15–20 years. The internal plastic core may become brittle, or the outer silver insulation may tear, reducing thermal efficiency. Inspecting ductwork during renovations is recommended.

What is the difference between an Inverter and a Non-Inverter?

Inverter systems vary the compressor speed to maintain temperature, offering high efficiency and stable comfort. Non-inverter systems (rare now) stop and start the compressor completely, resulting in high energy spikes and temperature fluctuations.

Can I add more zones later?

It is difficult to add zones after the initial installation. The unit capacity and duct design are calculated based on the original layout. Adding zones later may overload the fan or require expensive modification to the branch ducts.

Do I need Three-Phase power for ducted AC?

Not always. Systems up to approximately 14kW-16kW are available in Single-Phase. However, for large homes requiring 18kW or 20kW+ capacity, Three-Phase power is technically required to distribute the electrical load.

Start Your Ducted Air Conditioning Project

Selecting the correct ducted system involves balancing capacity, zoning capabilities, and electrical requirements. Kdac Electrical Supply offers a comprehensive range of components and units designed to meet rigorous Australian standards. Review the collection to evaluate the specifications that best align with your project’s thermal requirements and energy goals. For specific technical inquiries or availability checks, contact our team directly.
