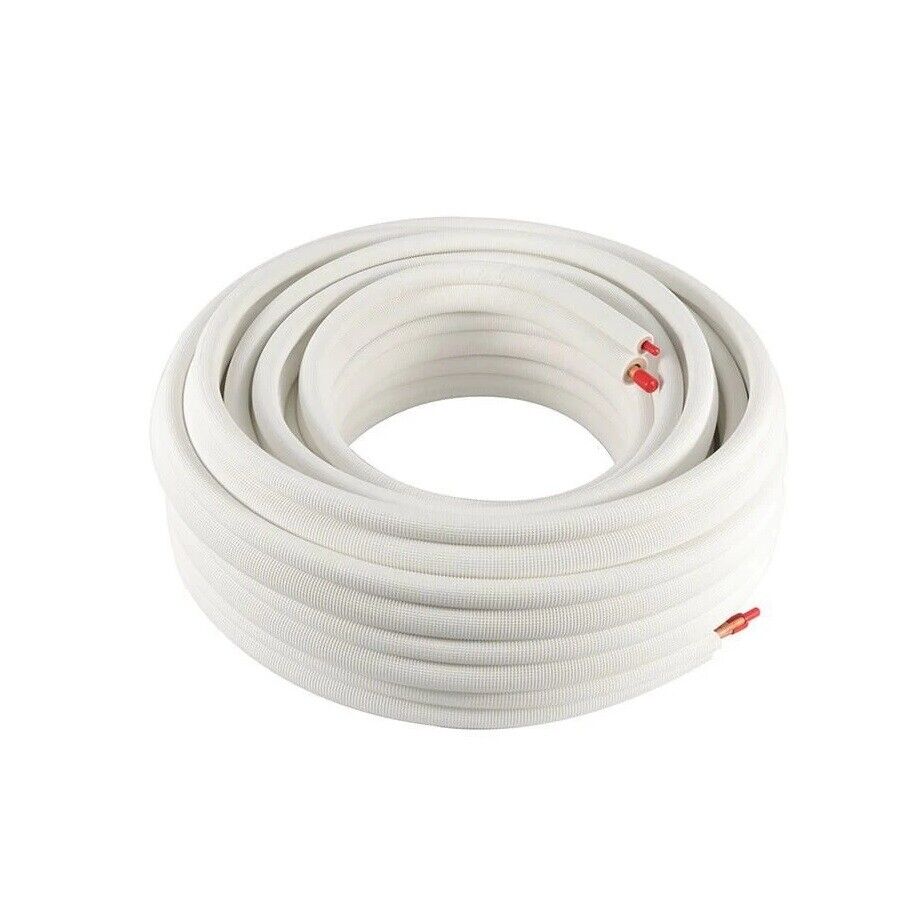

Copper pipes remain a critical component in modern air conditioning systems, serving as the primary conduit for refrigerant between indoor and outdoor units. Their performance directly affects system efficiency, durability, and long-term maintenance costs. Selecting the right type of copper pipe requires evaluating technical specifications, compatibility with refrigerants, and installation considerations.

Copper is favored due to its superior thermal conductivity, corrosion resistance, and ease of bending for tight installations. These properties allow for efficient heat transfer, reducing energy consumption and improving system lifespan. Understanding pipe dimensions, wall thickness, and classification standards is essential for informed decisions.

Types of Copper Pipes for Air Conditioning

Copper pipes are classified primarily by wall thickness and temper, which affect strength and suitability for different systems:

Key Insight: Type L pipes are the industry standard for most split and ducted systems, balancing cost, durability, and ease of installation.

Technical Considerations

1. Diameter Selection: Matching pipe diameter to the system's refrigerant flow rate prevents pressure drops and maintains efficiency. Undersized pipes can reduce cooling performance, while oversized pipes may increase material costs unnecessarily.

2. Refrigerant Compatibility: Modern systems use R-32, R-410A, or R-22 (older systems). Copper pipes must withstand chemical interaction and pressure levels for each refrigerant type.

3. Brazing and Connections: Proper joining methods prevent leaks. Industry practice recommends silver or phosphorous-copper brazing for reliability.

4. Insulation: Adequate insulation on suction lines prevents condensation and improves energy efficiency.


Decision Factors When Selecting Copper Pipes

When evaluating copper pipes for air conditioning, users typically consider:

• System Pressure Rating: Ensure the pipe can handle peak operating pressures.

• Environmental Conditions: Corrosive or coastal environments require corrosion-resistant coatings or alloys.

• Installation Complexity: Bending radius, accessibility, and connection types can affect labor costs and long-term reliability.

• Cost vs. Lifespan: Thicker pipes offer durability but higher material costs. Type L usually provides optimal value.


Practical Table: Pressure and Temperature Limits

Market Trends and Insights

• According to the Australian Refrigeration Council, copper remains the most widely used material in air conditioning installations, comprising over 75% of residential systems [1].

• Demand for high-pressure R-410A systems is rising, necessitating thicker, Type L or K pipes for safety and compliance [2].

• The global AC market expects 6% annual growth in split-system installations through 2027, increasing the demand for reliable copper piping [3].


Practical Tips for Installation and Maintenance

1. Pre-Fabrication: Cut and bend pipes before installation to minimize on-site errors.

2. Leak Testing: Conduct nitrogen pressure tests post-installation to detect potential leaks early.

3. Corrosion Protection: Use dielectric fittings in mixed-metal connections to avoid galvanic corrosion.


Common Questions About Copper Pipes in AC Systems

Q1: Can copper pipes be reused from old systems?

A: Only if they are undamaged, properly cleaned, and free from internal contamination. Reuse is generally discouraged for high-pressure systems.

Q2: Why is Type L preferred over Type M?

A: Type L balances durability, pressure handling, and cost, whereas Type M may fail under high-pressure or long-distance installations.

Q3: How do I know the right pipe diameter?

A: Refer to manufacturer specifications for each AC unit; pipe sizing tables consider refrigerant type, flow rate, and distance.

Q4: Do I need insulation on all copper pipes?

A: Insulation is critical on suction lines to prevent condensation and energy loss. Liquid lines may require minimal or no insulation.

Q5: How long do copper AC pipes typically last?

A: With proper installation and protection, copper pipes can last 25–30 years in residential systems.
