Klein Tools VDV501-851 Scout Pro 3 Ethernet Cable Tester Kit

Klein Tools VDV501-851 Scout Pro 3 Ethernet Cable Tester Kit

$169.00

Fast delivery across Australia

30 day return policy

Online chat support

Description

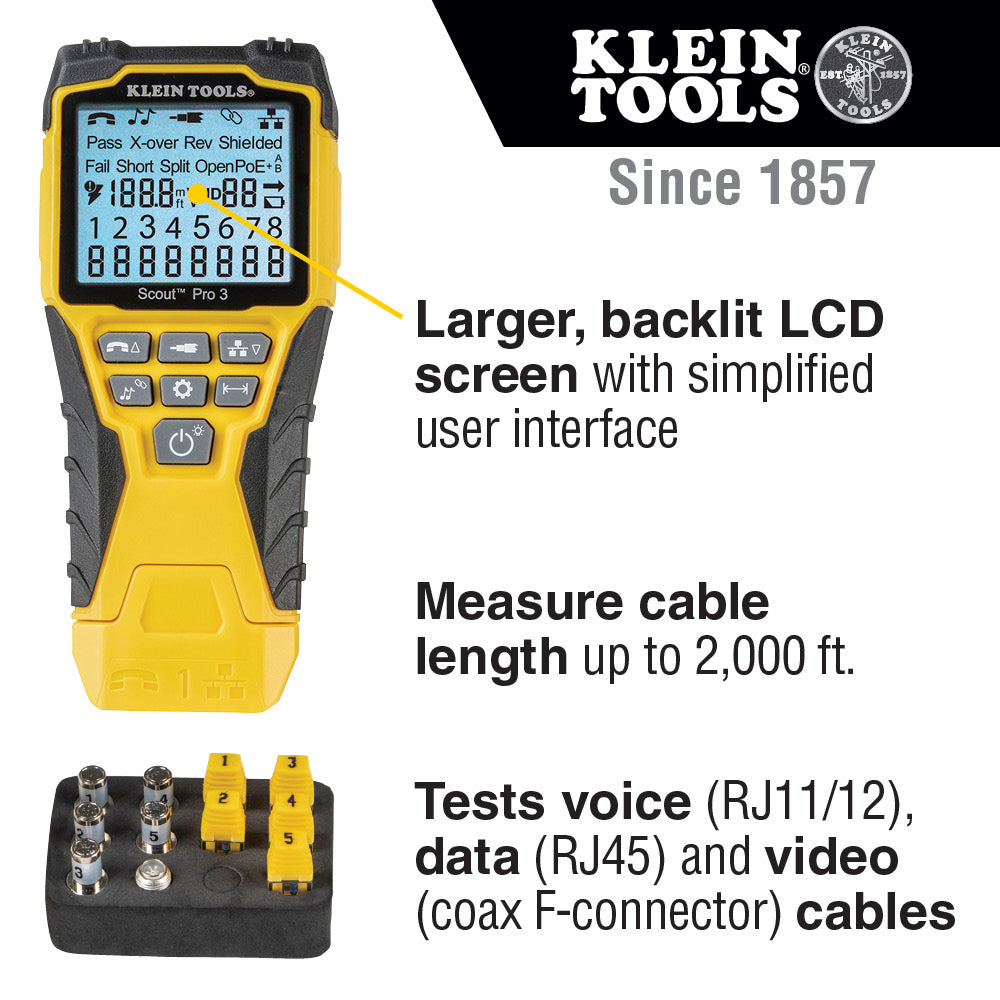

  • Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
  • Measures cable length of up to 2000' (610 m)

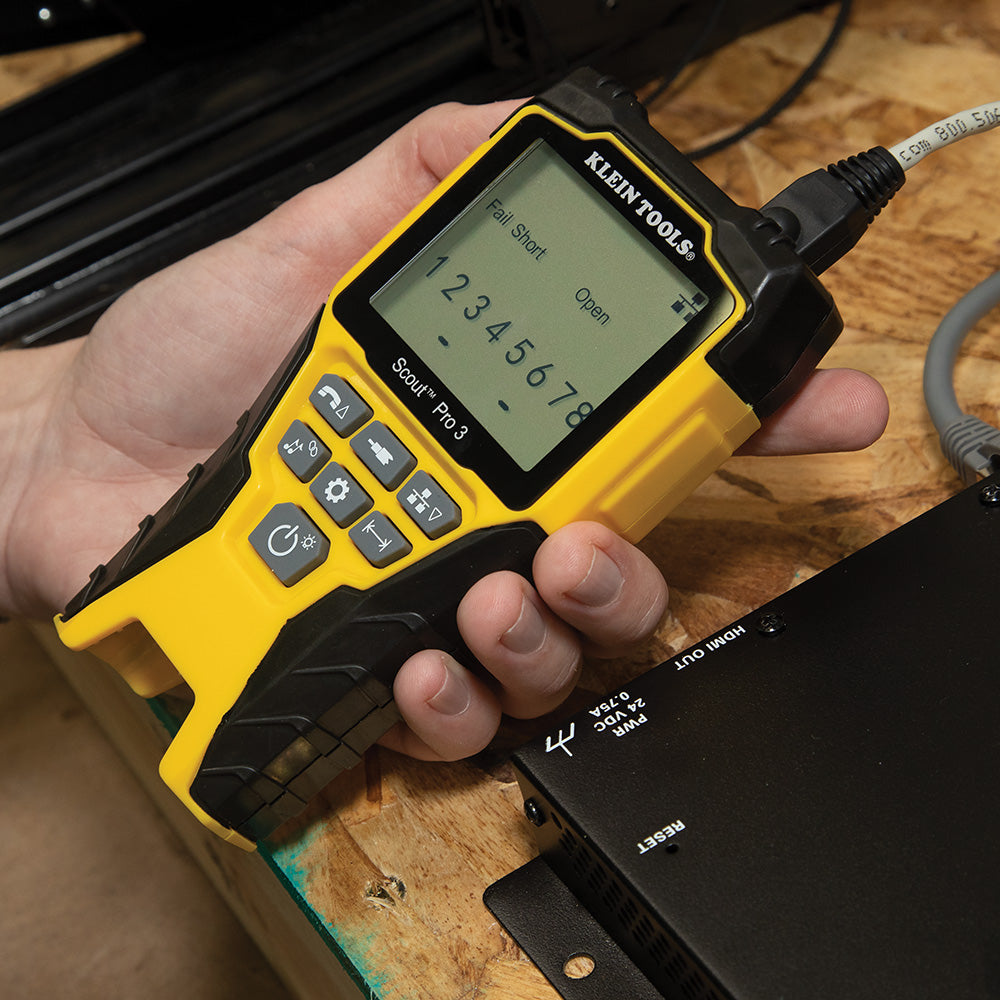

  • Test for open, short, miswired or split-pair faults

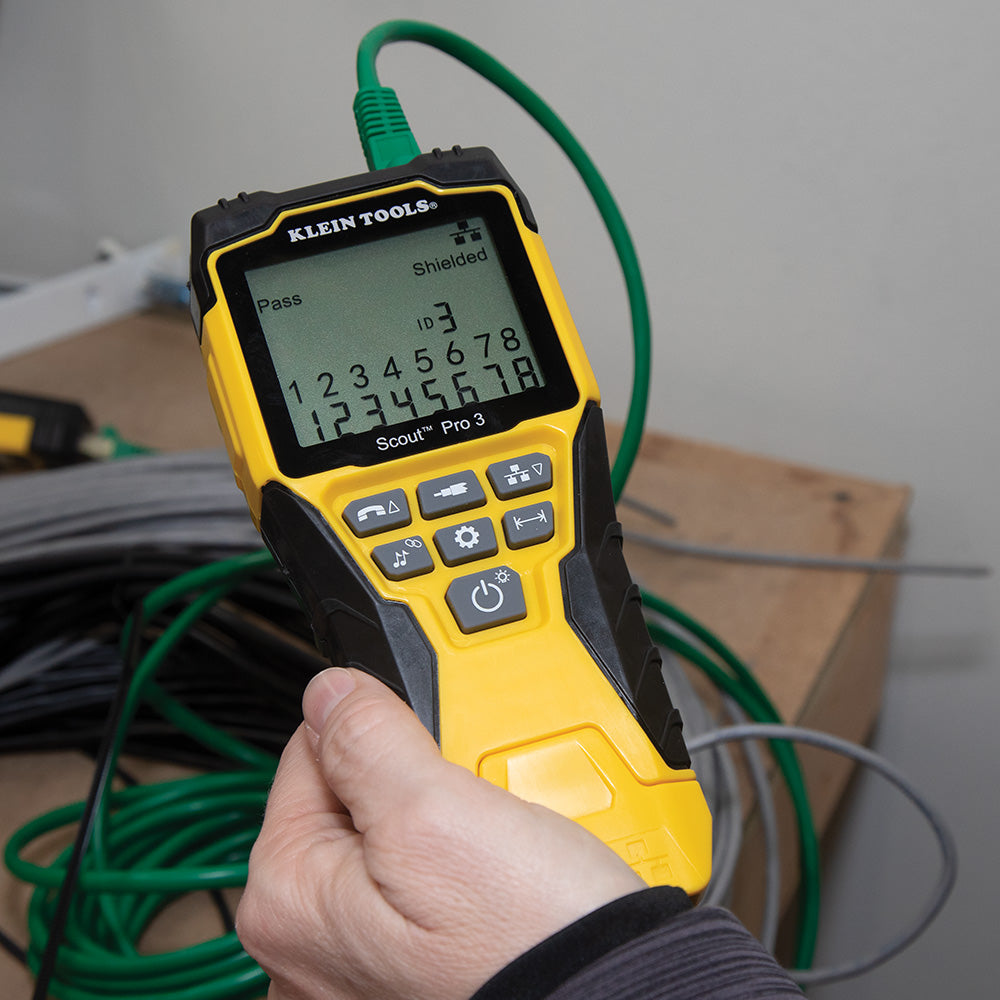

  • Backlit LCD screen displays cable length, wiremap, cable ID and test results
  • Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

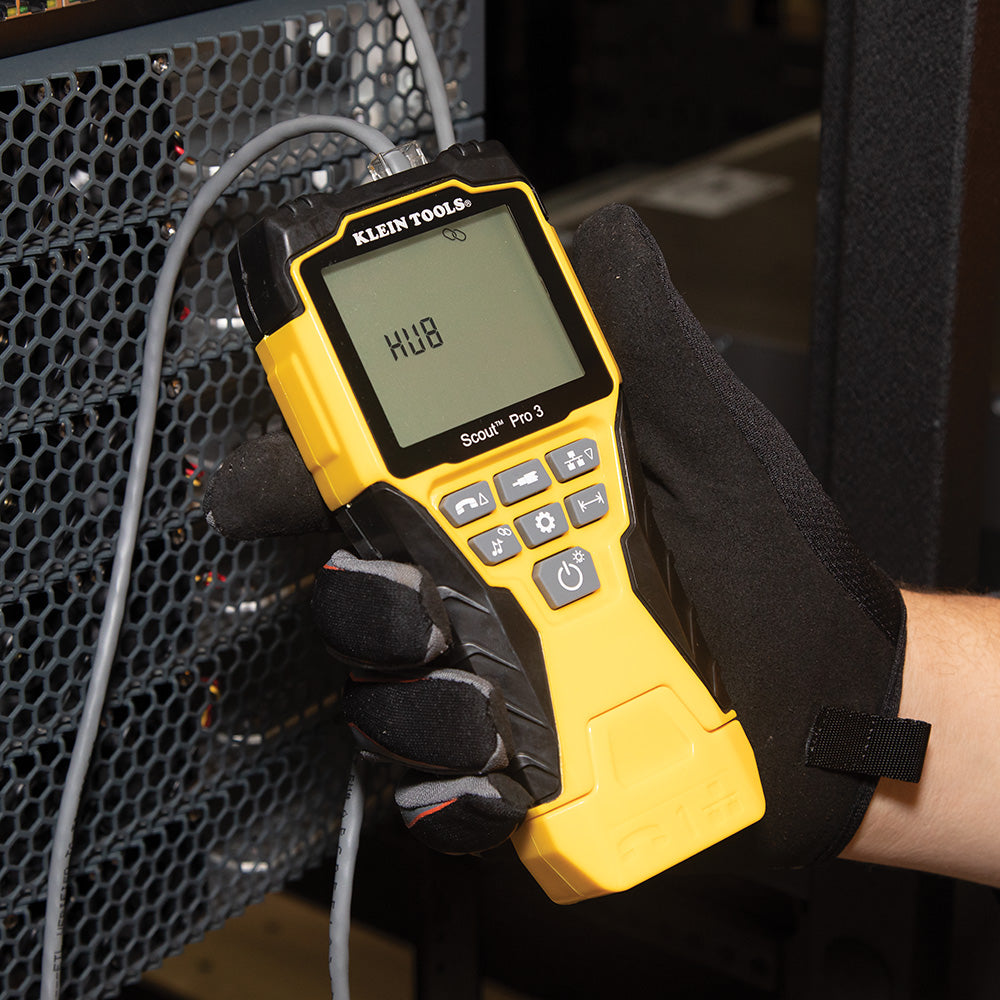

  • Hub blink mode to identify port location on a hub or a switch

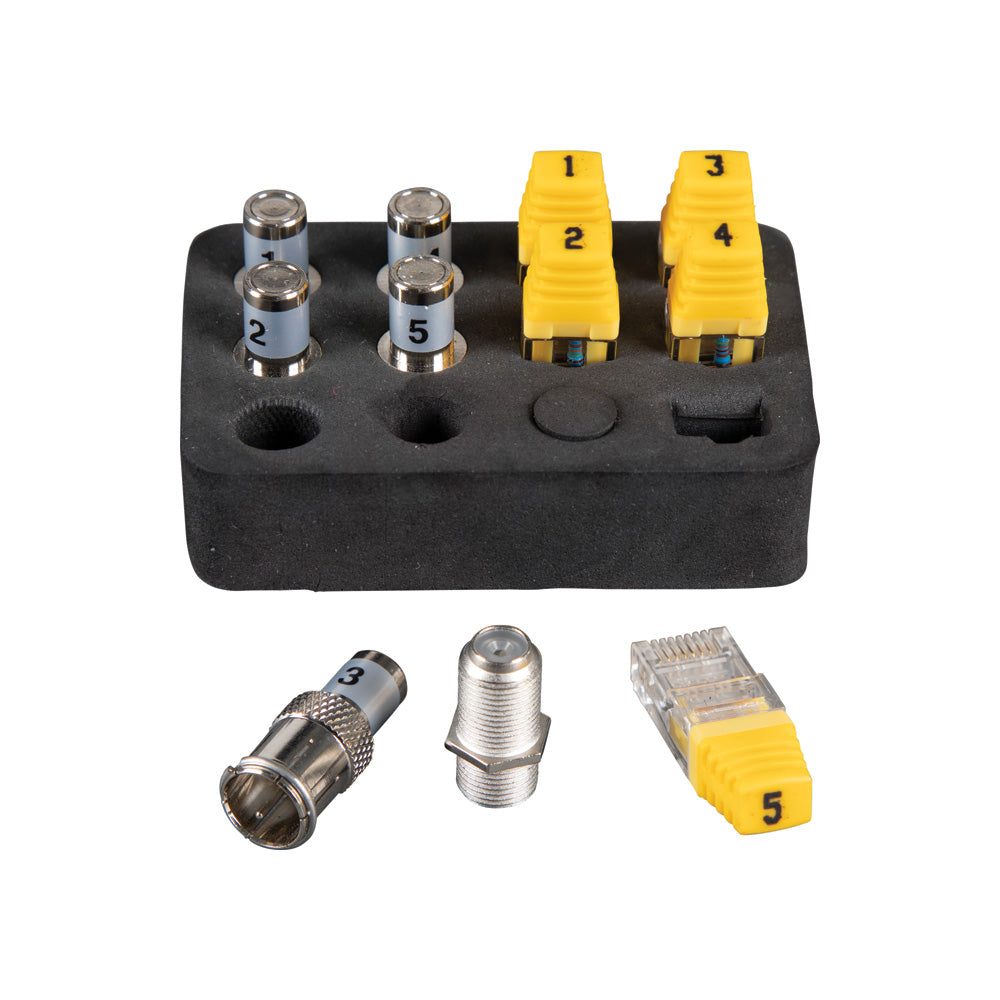

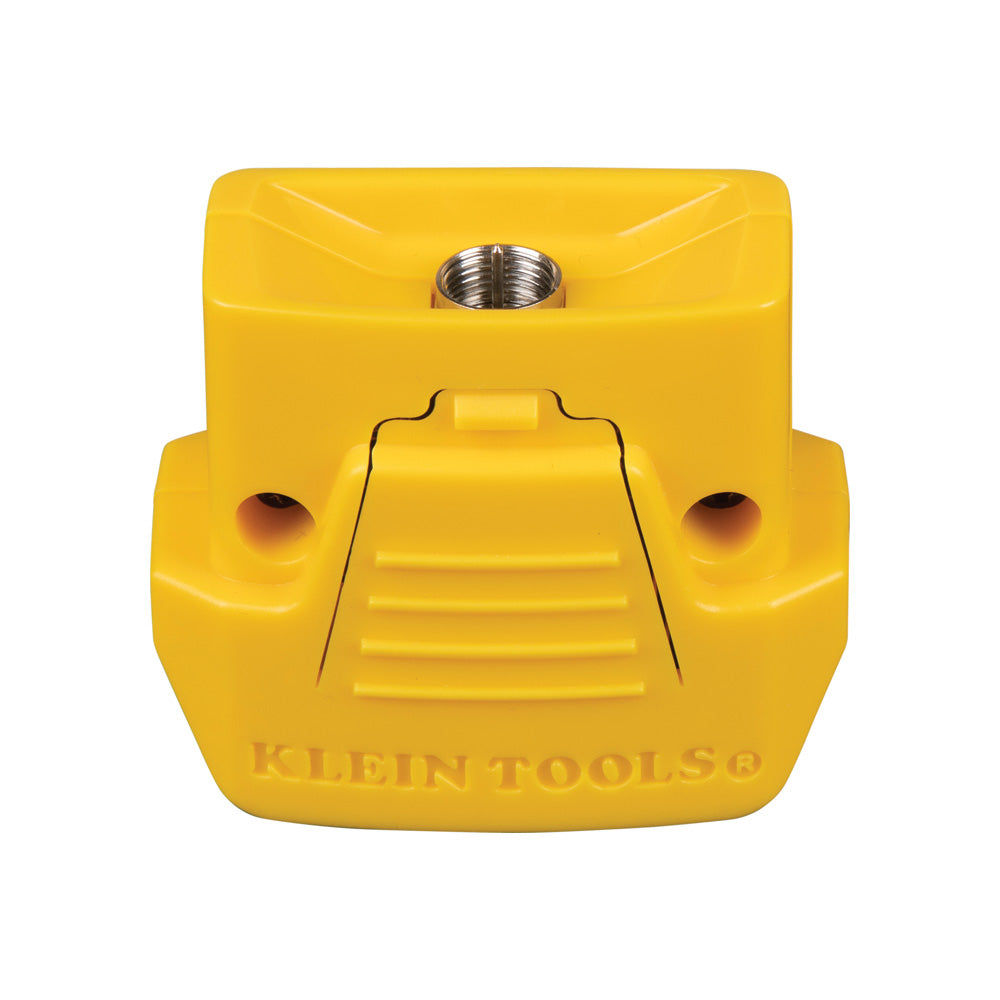

  • LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step

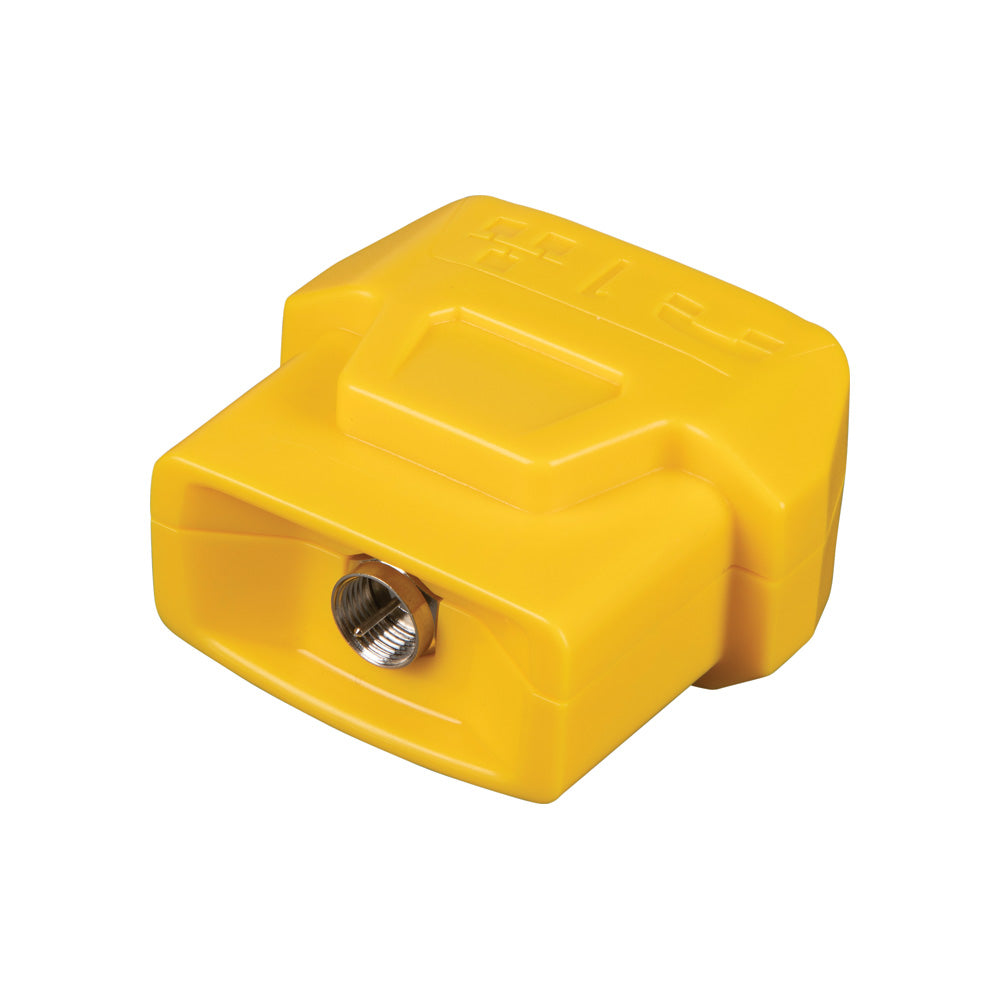

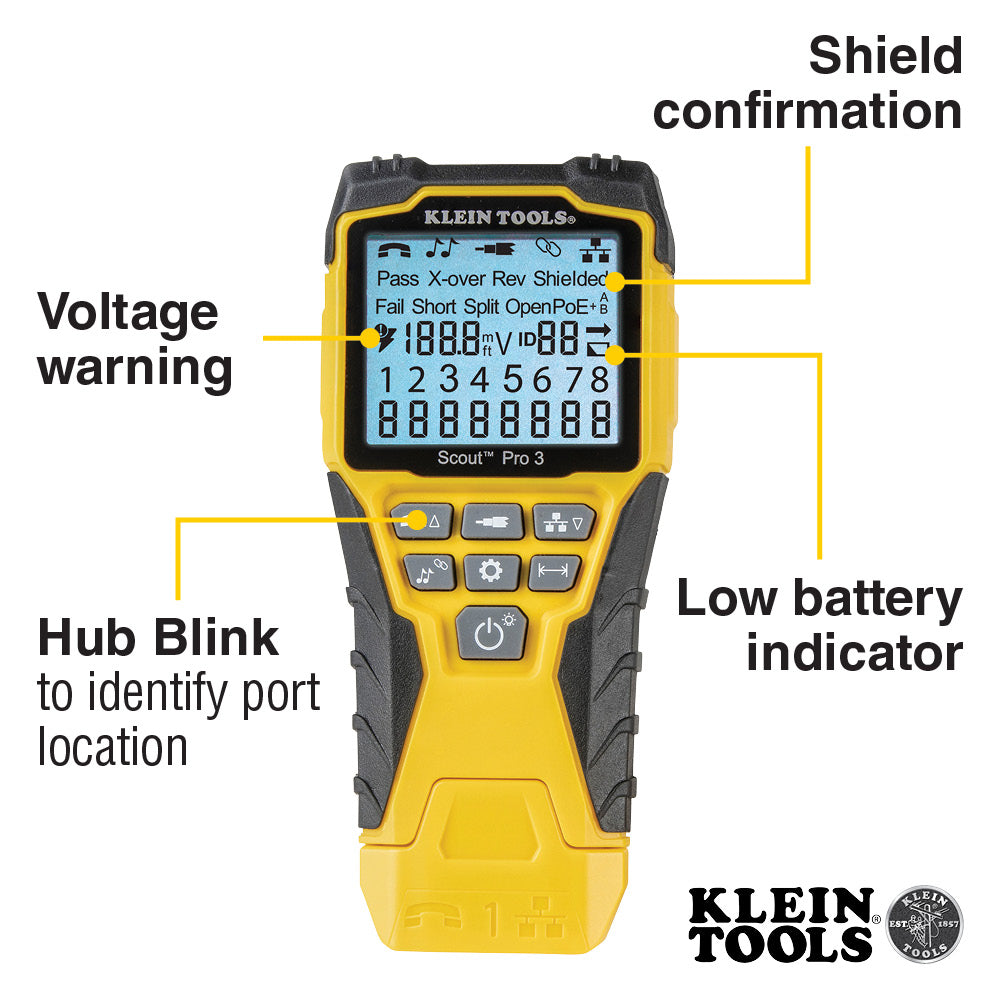

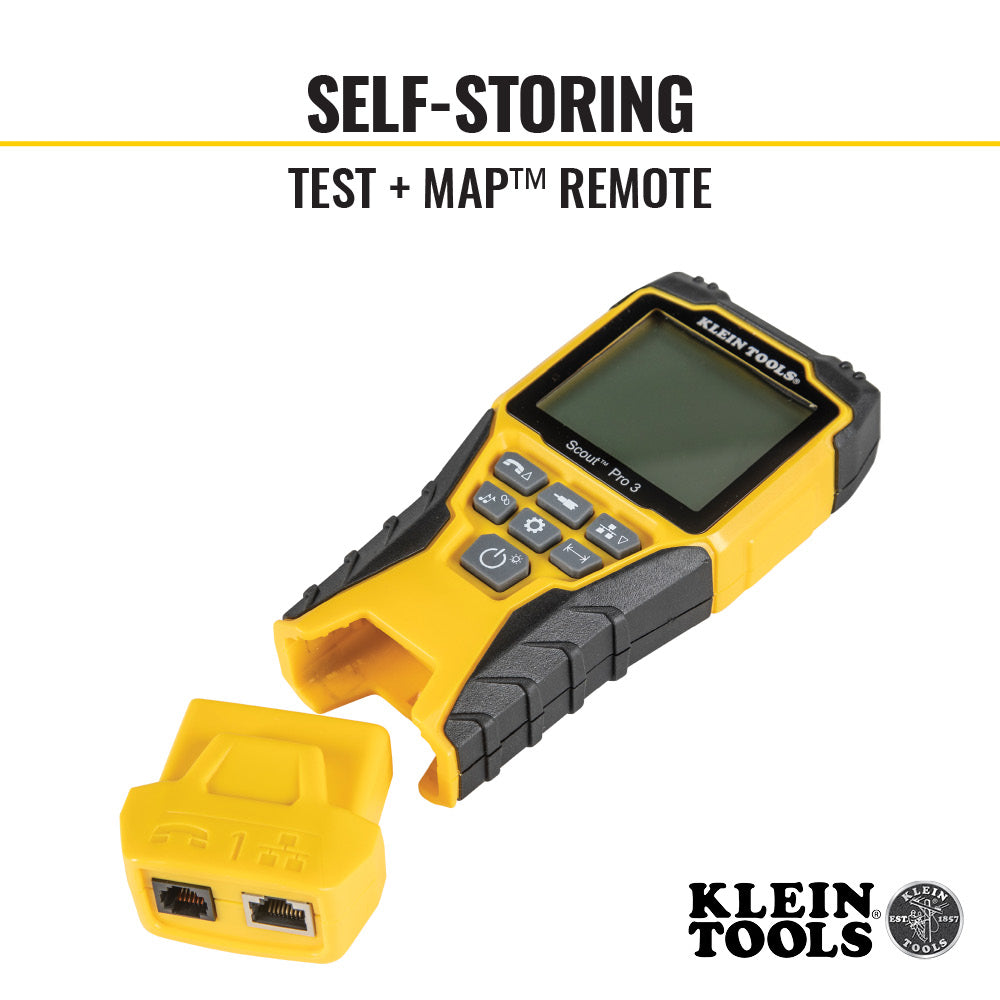

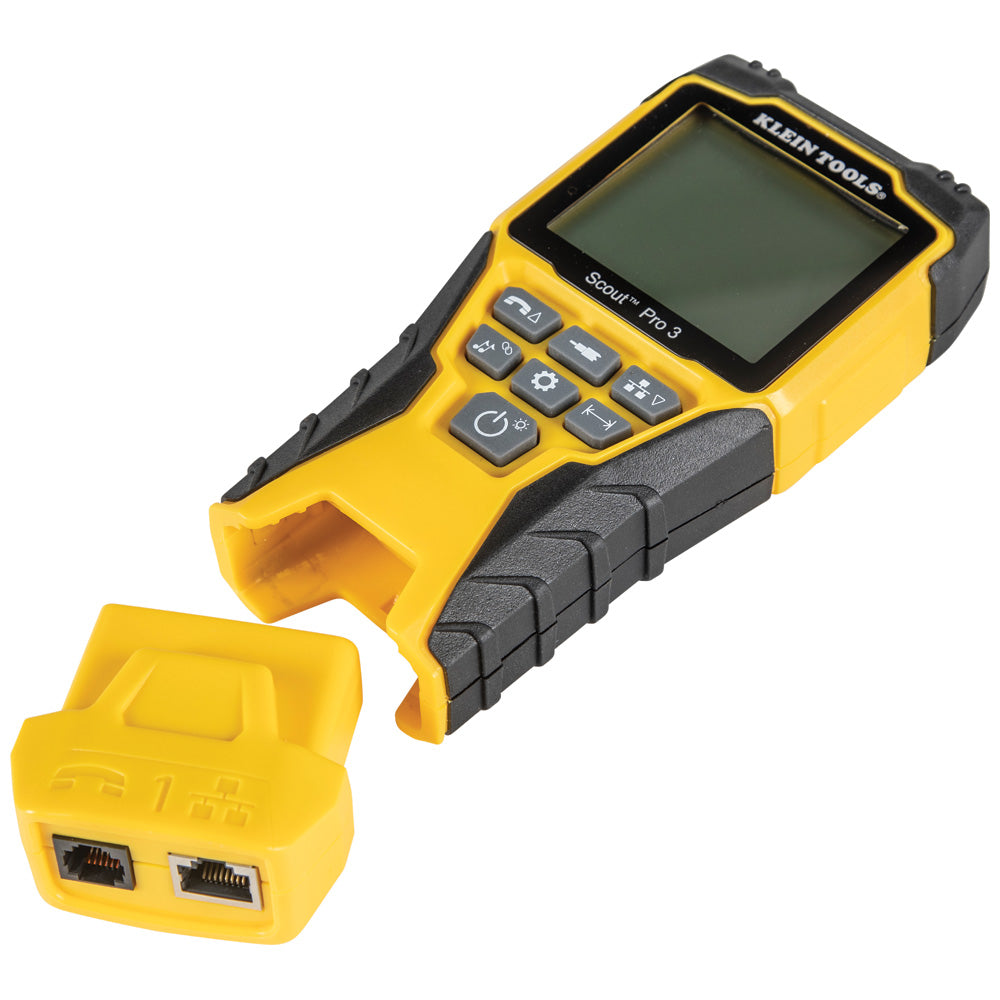

  • Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power-off feature to conserve battery life (9V included)
  • Auto Power-Off feature to conserve battery life (9V included)

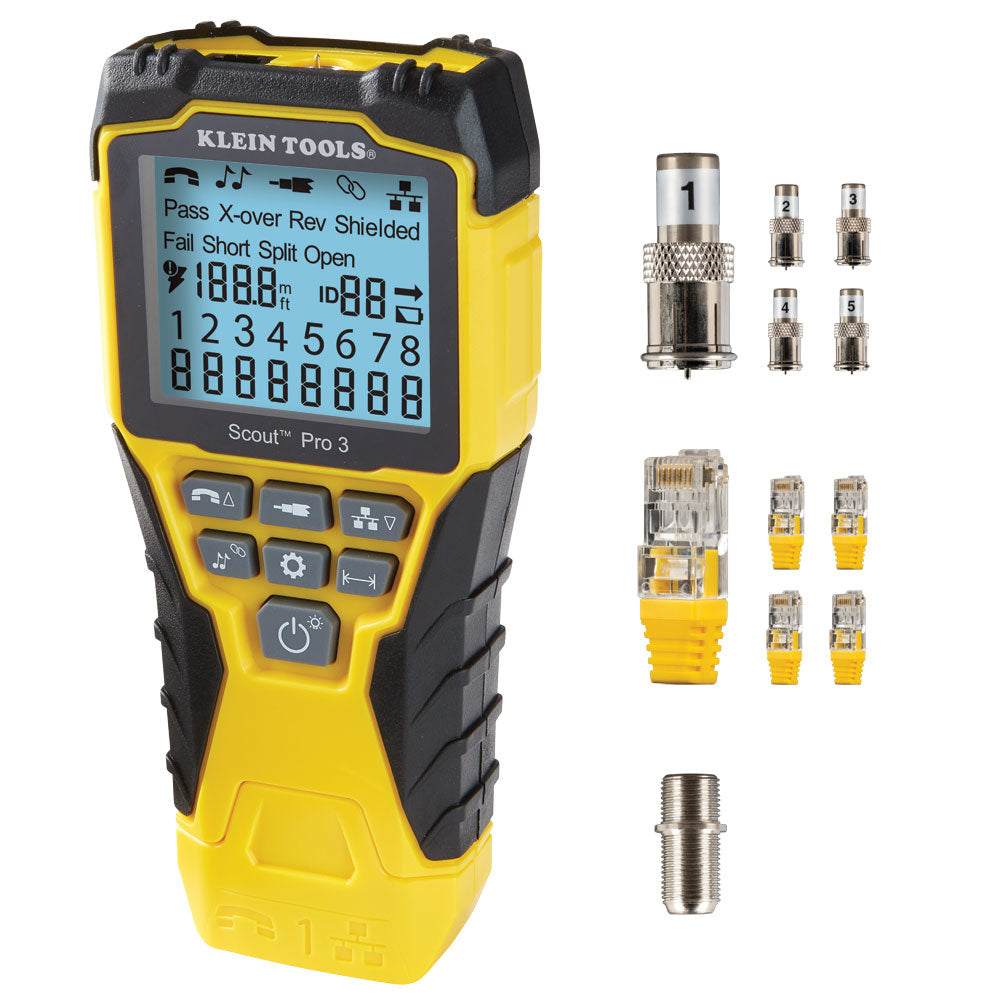

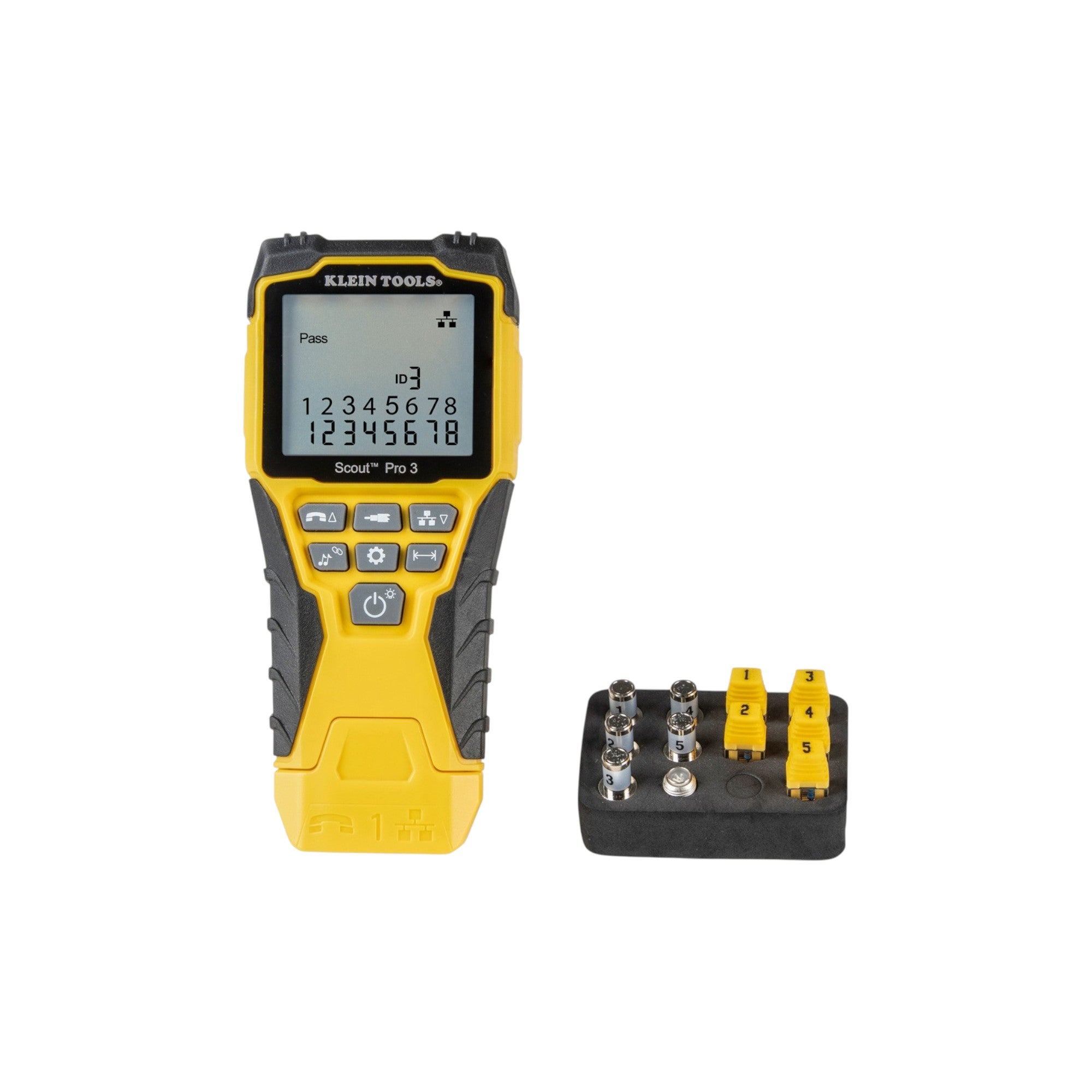

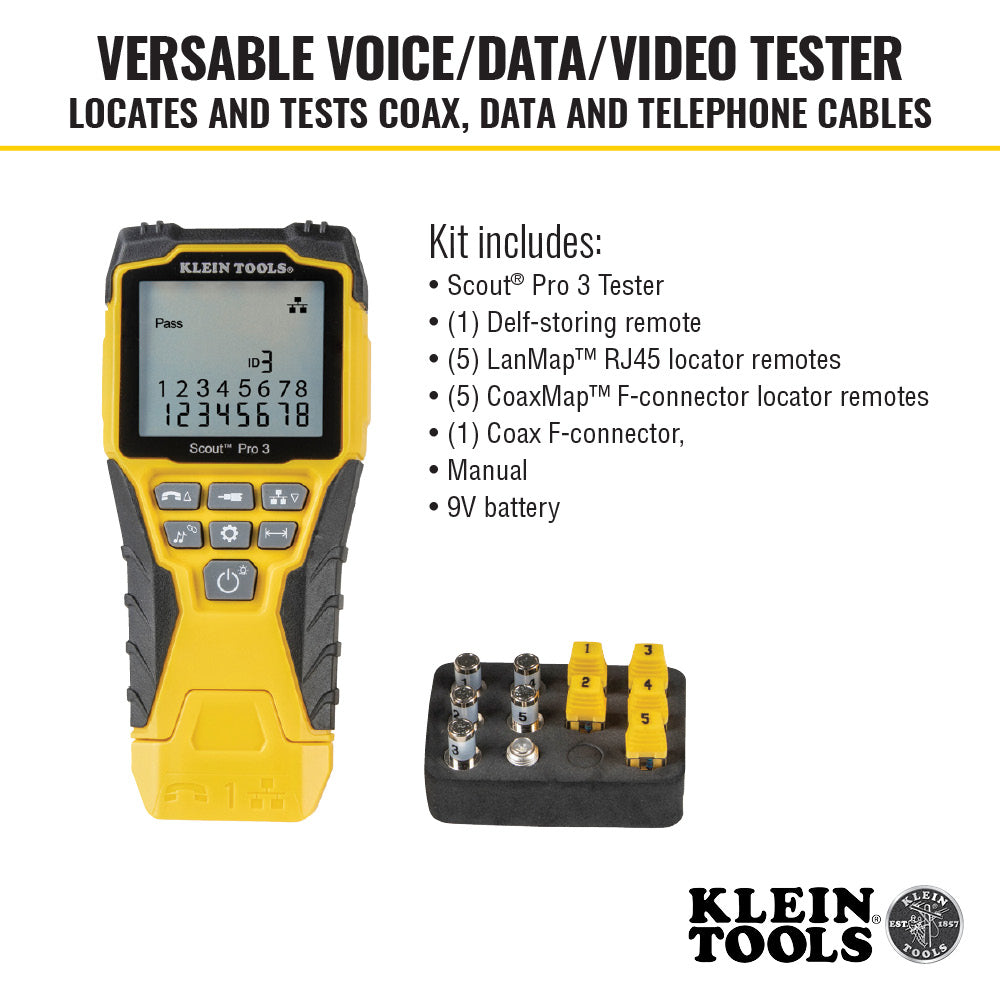

  • Kit includes: Scout™ Pro 3 Tester, (1) self-storing remote, (5) LanMap™ RJ45 locator remotes, (5) CoaxMap™ F-Connector locator remotes, (1) Coax F-Connector, manual and 9V battery
Specifications
Type Twisted Pair, DATA, Voice, LAN and Coaxial
Application Cable Testing
Special Features Measures Cable Length; Backlit LCD; Hub Blink
Cable Type DATA: Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7, COAXIAL: RG59, RG6/6Q
Overall Length 7'' (17.8 cm)
Overall Height 3'' (7.6 cm)
Overall Width 1.25'' (3.2 cm)
Material Plastic and Metal

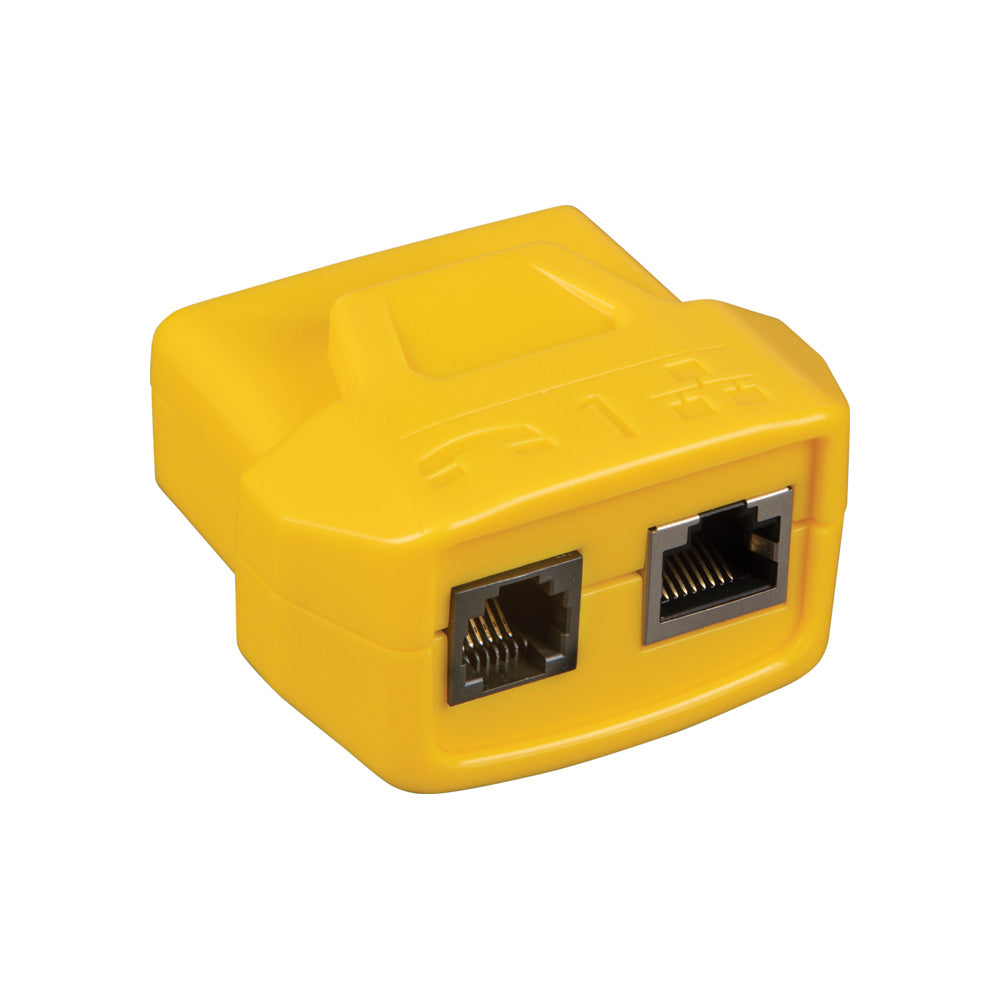

Test-n-Map ID Remotes (1) Self-Storing
Location ID (5) RJ45 Data and (5) F-Coax Connector Locator Remotes

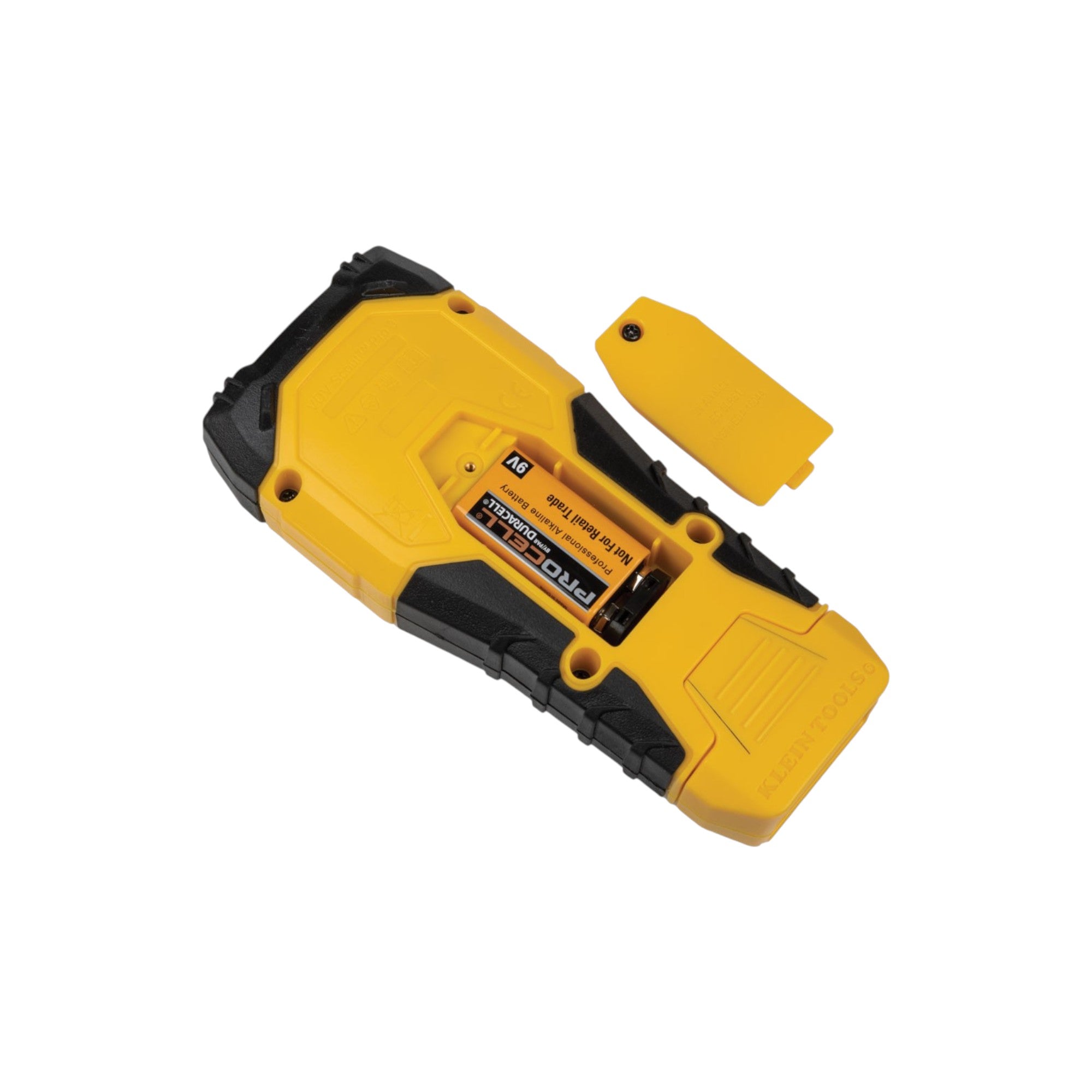

Batteries 9V Alkaline
Battery Life Active: 50 hrs
Drop Protection 2 m
Supported Remotes 18
Connection & Adapter Types RJ11, RJ12, RJ45, Coax F
Display Back-lit LCD
Multiple-style Tone Generator Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected Open, Short, Mis-wire
Testing & Measurement Types Ethernet / Data and Coaxial
Accuracy Length Measurement: +/-5% (ft) or 5% (m)
Included Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-Connector Locator Remotes, (1) Coax F-Adapter, Manual, (1) 9V Battery
Standard CE
Weight 1.2 lb (0.5 kg)
UPC 092644692260
Brochure
Instruction Manual
