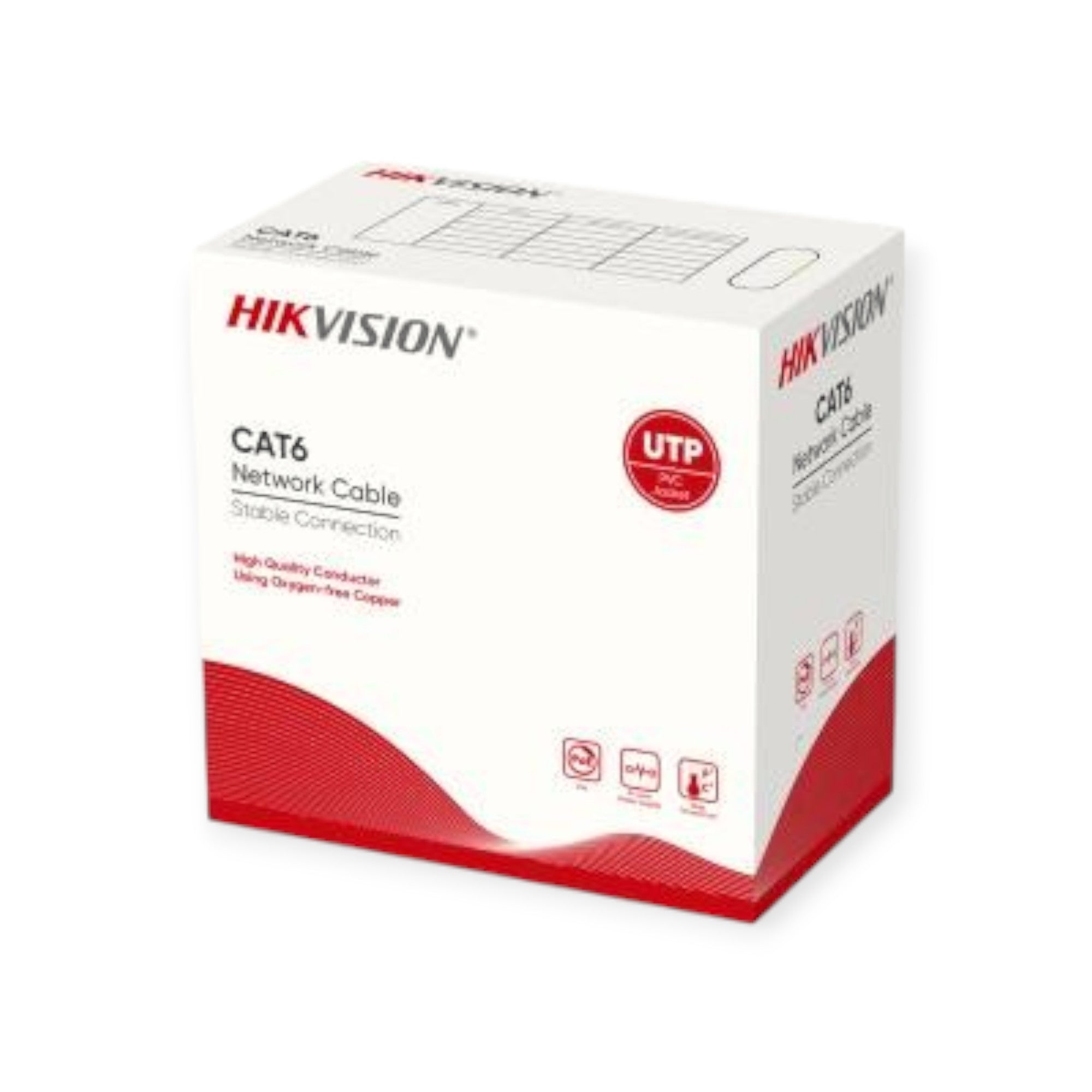

Box packaging of HIKVISION CAT6 Network Cable with red and white colors and product information.
  • Box packaging of HIKVISION CAT6 Network Cable with red and white colors and product information.
305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM)

305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM)

$427.90

Fast delivery across Australia

30 day return policy

Online chat support

Description

This 305 m CAT6 UTP Network Cable is a must-have for any network installation. With a full diameter of 305 m and a core diameter of 0.53 mm, this cable offers excellent transmission performance using solid copper, guaranteed long PoE transmission distance, and great PVC flame resistance. Quality is verified by Fluke test. Upgrade your network today and experience seamless connectivity!

Datasheet

Specifications
Core Colours 1. White-Blue / Blue
2. White-Orange / Orange
3. White-Green / Green
4. White-Brown / Brown
Packing Wooden Tray & Carton
Carton Dimension Per request
Packing Length 305 ± 1.5 m
Rip-cord Yes
Drain wire No
Sheath Physical Properties Before Aging: Tensile Strength: ≥13.5 MPa; Elongation: ≥150%
Aging Period: 100℃ × 24h × 10d
After Aging: Tensile Strength: ≥12.5 MPa; Elongation: ≥125%
Cold bend: (-20±2℃ × 4h), 8 × Cable O.D., No visible cracks
Electrical Characteristics (20℃) Impedance (1.0-250.0MHz): 100±15 Ω
Delay Skew (1.0-250.0MHz): ≤45 ns/100m
DC Resistance: ≤9.38 Ω/100m
DC Conductor Resistance Unbalance: ≤5.0%
Conductor Material: SOLID-Bare Copper (99.95%)
Nom. O.D.: 0.530 ± 0.005 mm
Insulation Material: HDPE
Diameter: 0.95 ± 0.05 mm
Sheath Thickness 0.55 ± 0.05 mm
External O.D. 5.8 ± 0.4 mm
Surface Clean, Frap, Satiation
Sheath Material/Standard PVC (RoHS compliant), CM
Sheath Colour White RAL9003
Surface Printing Letter height: 3.0 ± 0.3 mm, Black printing
Print error & space: ≤ ±0.5%, 1 m
