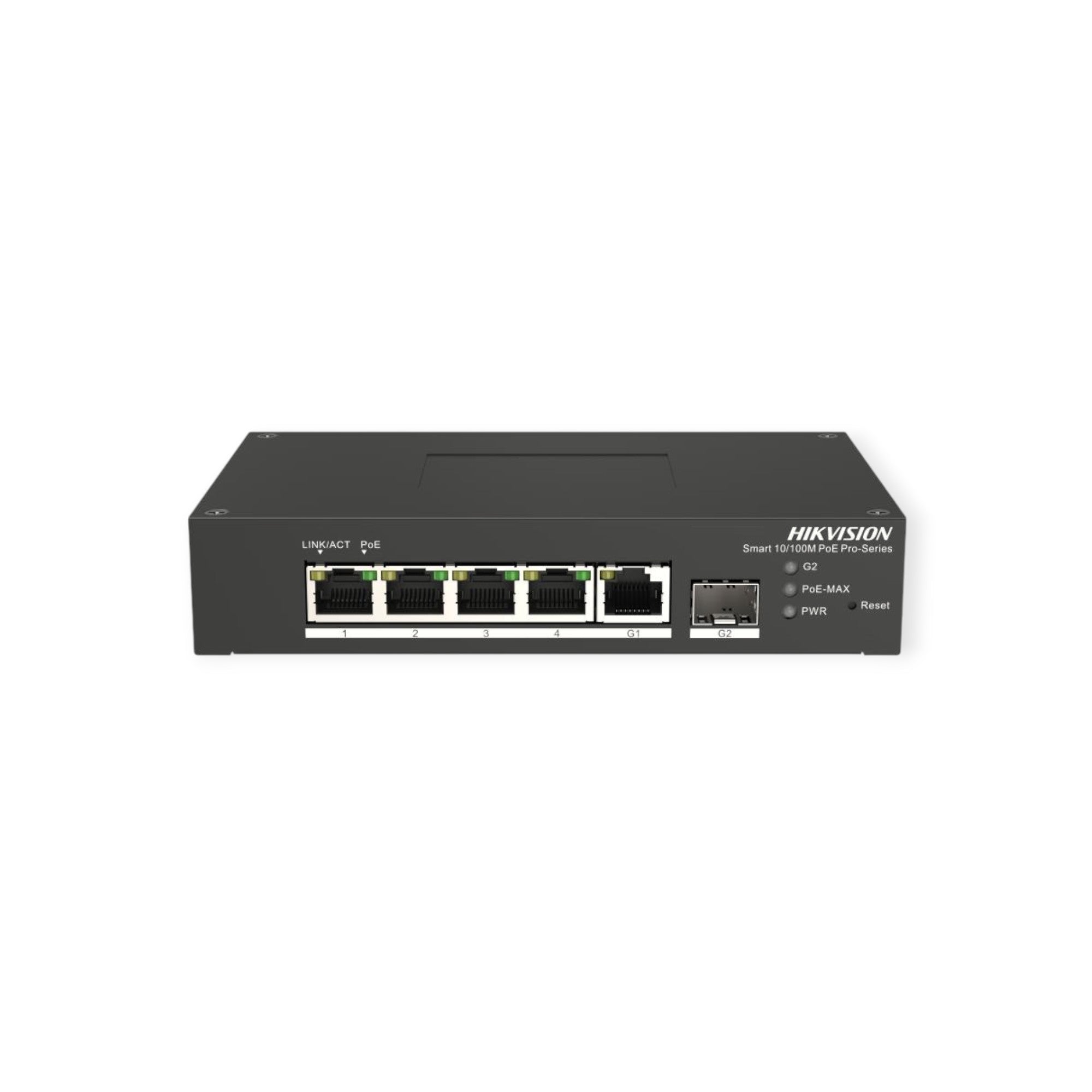

A black 4 port fast Ethernet smart harsh POE switch with ports labeled 1 to 4 and an power indicator
  • A black 4 port fast Ethernet smart harsh POE switch with ports labeled 1 to 4 and an power indicator
4 Port Fast Ethernet Smart Harsh POE Switch

4 Port Fast Ethernet Smart Harsh POE Switch

$110.90

Fast delivery across Australia

30 day return policy

Online chat support

Description

This 4 Port Fast Ethernet Smart Harsh POE Switch is perfect for managing your network with visualized topology and monitoring its health. With layer 2 features like PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, and ERPS, it's designed to withstand harsh environments from -30 °C to 65 °C.


Specifications
Shell Material Metal
Net Weight 0.4 kg (0.8 lb)
Gross Weight 1.0 kg (2.2 lb)
Dimensions (W×H×D) 158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'')
Operating Temperature -30 °C to 65 °C (-22 °F to 149 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating/Relative Humidity 5% to 95% (no condensation)
Power Supply 48VDC, 1.36A
Installation Mode Desk-Mounted, Rail
Max. Power Consumption 65 W
Idle Power Consumption 5 W
Surge Protection 6 kV
Ports 4 × 10/100 Mbps PoE, 1 × Gigabit RJ45, 1 × Gigabit fiber (SFP)
MAC Address Table 2 K
Internal Cache 1 Mbits
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pins 8-pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Ports 1–4
Max. Port Power 30 W
PoE Power Budget 60 W
Software Features Long Range, Port Isolation, PoE Watchdog (Ports 1–4 auto restart unresponsive devices), QoS, VLAN, HPP, Loop Prevention, System Maintenance, Storm Control, DHCP Snooping (disabled by default), Port Rate-Limiting
Certifications/Approvals EMC: CE-EMC (EN 55032, EN 61000-3-2/-3, EN 50130-4, EN 55035)
Safety: CB, IEC 62368-1 (Second Edition), CE-LVD
Chemical & Environmental: CE-RoHS, WEEE, REACH
Payments & Returns
  • Returns will be only accepted within 30 days from the purchase date
  • If the item is defective upon arrival, the customer has up to 30 days from the purchase date to receive an exchange or a full refund
  • If you have ordered the incorrect item, the customer will cover return and additional shipping costs to have the correct item resent out
  • There is a 20% Restocking fee for all refunds which includes (A change of mind, incorrect item ordered or if you are not satisfied with the product) to cover our postage and admin fees
  • We will not accept returns that has been used, not placed back into the original packaging or showing cosmetic wear on the product and packaging.
Shipping
  • Orders generally gets dispatched within 1 to 2 business days from Sydney

  • Estimated delivery time is anywhere between 2 to 7 business days, this can take longer if the location is in a rural area
  • Our primary courier services use is Sendle & Australia Post
  • Tracking details can be viewed in your purchase history when the item has been sent
  • We will not be held responsible if the parcel has been delayed lost or damaged during transit, the customer will require to lodge an enquiry through the courier service or through KDAC.
Warranty
  • 1 Year Warranty
  • Warranty will not be covered if the installation has not be installed by a licensed electrician.
