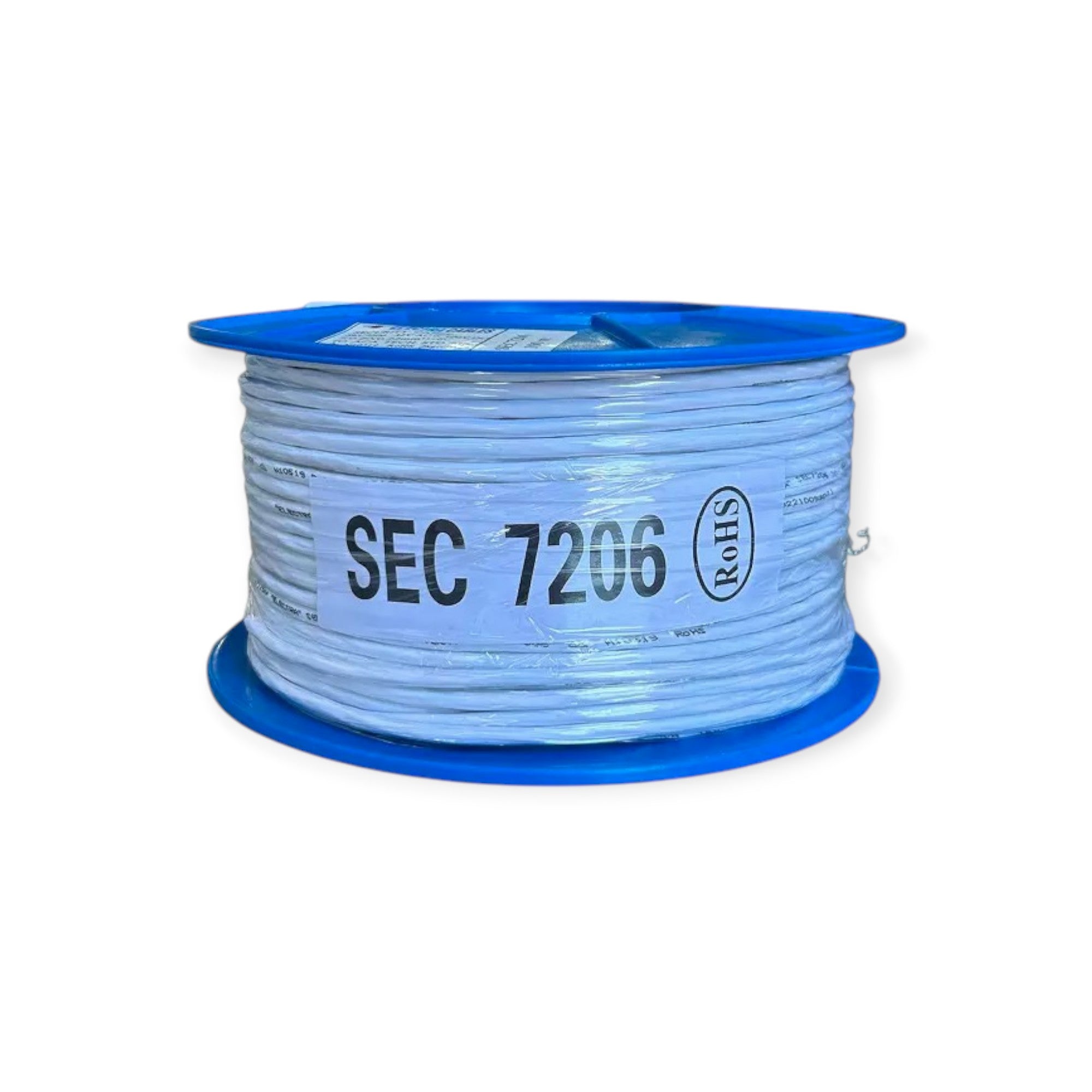

Spool of wire with 'SEC 7206' label on a white background
  • Spool of wire with 'SEC 7206' label on a white background
Electra Cable 0.22mm 6 Core Security & 7/0.2mm Electrical Data Cable Wire SEC 7206

Electra Cable 0.22mm 6 Core Security & 7/0.2mm Electrical Data Cable Wire SEC 7206

$64.79

Fast delivery across Australia

30 day return policy

Online chat support

Description

Get reliable and secure electrical data transfer with the Cable 0.22mm 6 Core Security & 7/0.2mm Electrical Data Cable Wire SEC 7206. Perfect for security systems, control and communication equipment, access control, detection and monitoring. Trust ELECTRA CABLES for top-quality wiring solutions.

Specifications
Standard Australian Standard Security Cable
Brand ELECTRA CABLES
Length 100 Meters
Conductor Plain annealed Copper (AS/NZS1125)
Insulation PVC V75
Sheath PVC V75
Voltage 100V DC or 32V AC
Cable Size 0.22mm (typical conductor size for 6 core security cable is 0.22mm; some market cables also use 14/0.20mm, which is ≈0.44mm², but 0.22mm² is industry standard for security/alarm cables)
Number of Cores 6 Core
Compliance AS/NZS 1125 (Conductor), AS/NZS 3808 (PVC), ACA/ACMA compliant
Colour White sheath; core colours typically White, Blue, Red, Black, Green, Yellow[2][7][9]
Payments & Returns
  • Returns will be only accepted within 30 days from the purchase date
  • If the item is defective upon arrival, the customer has up to 30 days from the purchase date to receive an exchange or a full refund
  • If you have ordered the incorrect item, the customer will cover return and additional shipping costs to have the correct item resent out
  • There is a 20% Restocking fee for all refunds which includes (A change of mind, incorrect item ordered or if you are not satisfied with the product) to cover our postage and admin fees
  • We will not accept returns that has been used, not placed back into the original packaging or showing cosmetic wear on the product and packaging.
Shipping
  • Orders generally gets dispatched within 1 to 2 business days from Sydney

  • Estimated delivery time is anywhere between 2 to 7 business days, this can take longer if the location is in a rural area
  • Our primary courier services use is Sendle & Australia Post
  • Tracking details can be viewed in your purchase history when the item has been sent
  • We will not be held responsible if the parcel has been delayed lost or damaged during transit, the customer will require to lodge an enquiry through the courier service or through KDAC.
Warranty
  • 1 Year Warranty
  • Warranty will not be covered if the installation has not be installed by a licensed electrician.
