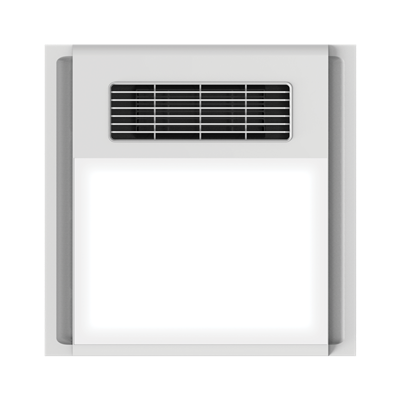

Ventilation grille with white cover and black base on a white background
  • Ventilation grille with white cover and black base on a white background

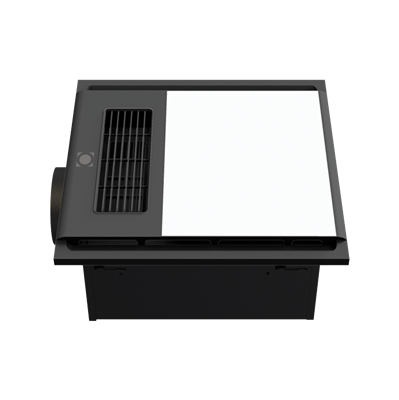

  • Ceiling-mounted HVAC unit on a white background
  • White rectangular air conditioning unit with a grid on a white background

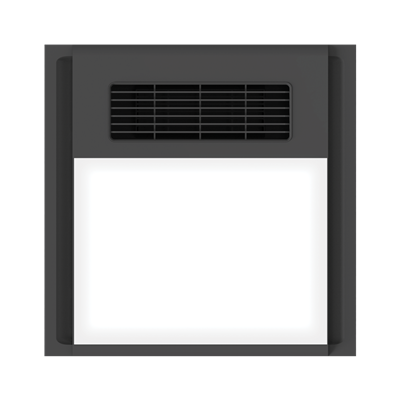

  • Black rectangular ceiling vent with a light panel on a white background
  • Rectangular air vent with black grille on a white background
  • kdac
Domus HEATCORE 4 IN 1 RETROFIT BATHROOM HEATER Item No. BH-HEATCORE

Domus HEATCORE 4 IN 1 RETROFIT BATHROOM HEATER Item No. BH-HEATCORE

$315.00
ColorWhite

Fast delivery across Australia

30 day return policy

Online chat support

Description

Model Number: BH-HEATCORE

The HEATCORE 4-In-1 Retrofit Line Bathroom Heater offers a modern flush-like appearance, designed to replace previously installed 3-In-1 Infrared bathroom heater models.  Suitable for most contemporary bathroom designs, combined with the latest technology in PTC bathroom heater models. Retrofit Line range offers 4-In-1 Functions – Heater, Exhaust Fan, Circulating Fan, and Light Unit. Patented Heat Breeze Technology heats the room while offering low level extraction to help reduce condensation build up in the bathroom. This Retrofit Line model features a single AC Motor, producing a 2150W output of powerful heat breeze, high volume extraction at 300m3/h, circulating fan to reduce warm temperature build up, and a 12W LED Tri-Colour switchable light. Complete with Digital Wall Controller, allowing easy switching from all modes, and an ALL-OFF button for exiting. Ideal for retrofit installations, where no extra switch wires are required, simply utilising two cores from the 5-core wiring that is existing from previous installation.


Domus PTC Bathroom Heaters feature an advanced safety feature where the unit will automatically shut off after two hours in case it is left on accidentally. If the unit runs for two hours continuously, a safety function will automatically turn it off. This setting can be overridden and reset by pressing any switch on the controller within this two-hour period. Ideal for new and existing installations with a larger 390x390mm fascia frame, and a variable cutout size from 330x330mm to 350x350mm, which will cover most existing 2 and 4 Heat Infrared Bathroom Heater models. Accessories include Digital Controller Wall Controller, 3M Flexible Duct, and Exterior Grille. All Domus PTC Bathroom Heaters are backed by our 5 Year In-Home Warranty. The HEATCORE 4-In-1 Retrofit Line Bathroom Heater offers a modern flush-like appearance, designed to replace previously installed 3-In-1 Infrared bathroom heater models.  Suitable for most contemporary bathroom designs, combined with the latest technology in PTC bathroom heater models. Retrofit Line range offers 4-In-1 Functions – Heater, Exhaust Fan, Circulating Fan, and Light Unit. Patented Heat Breeze Technology heats the room while offering low level extraction to help reduce condensation build up in the bathroom. This Retrofit Line model features a single AC Motor, producing a 2150W output of powerful heat breeze, high volume extraction at 300m3/h, circulating fan to reduce warm temperature build up, and a 12W LED Tri-Colour switchable light. Complete with Digital Wall Controller, allowing easy switching from all modes, and an ALL-OFF button for exiting. Ideal for retrofit installations, where no extra switch wires are required, simply utilising two cores from the 5-core wiring that is existing from previous installation.


Domus PTC Bathroom Heaters feature an advanced safety feature where the unit will automatically shut off after two hours in case it is left on accidentally. If the unit runs for two hours continuously, a safety function will automatically turn it off. This setting can be overridden and reset by pressing any switch on the controller within this two-hour period. Ideal for new and existing installations with a larger 390x390mm fascia frame, and a variable cutout size from 330x330mm to 350x350mm, which will cover most existing 2 and 4 Heat Infrared Bathroom Heater models. Accessories include Digital Controller Wall Controller, 3M Flexible Duct, and Exterior Grille. All Domus PTC Bathroom Heaters are backed by our 5 Year In-Home Warranty.
Specifications
Order Code BH-HEATCORE
Product Family Heatcore
Lamp Colour Temperature 3K / 4K / 5K
Length 390 mm
Width 390 mm
Depth 158 mm
Cut-out Size Length 330–350 mm
Cut-out Size Width 330–350 mm
Cut-out Size Depth 200 mm
Wattage 30W
Lumen Output 850–950 lm
Input Voltage 240V
Application Bathroom
CRI >80
Warranty Period 5 Years
Warranty Type In Home
Brochure



Brochure

Instruction Manual



Installation Layout 3D (DWG).
