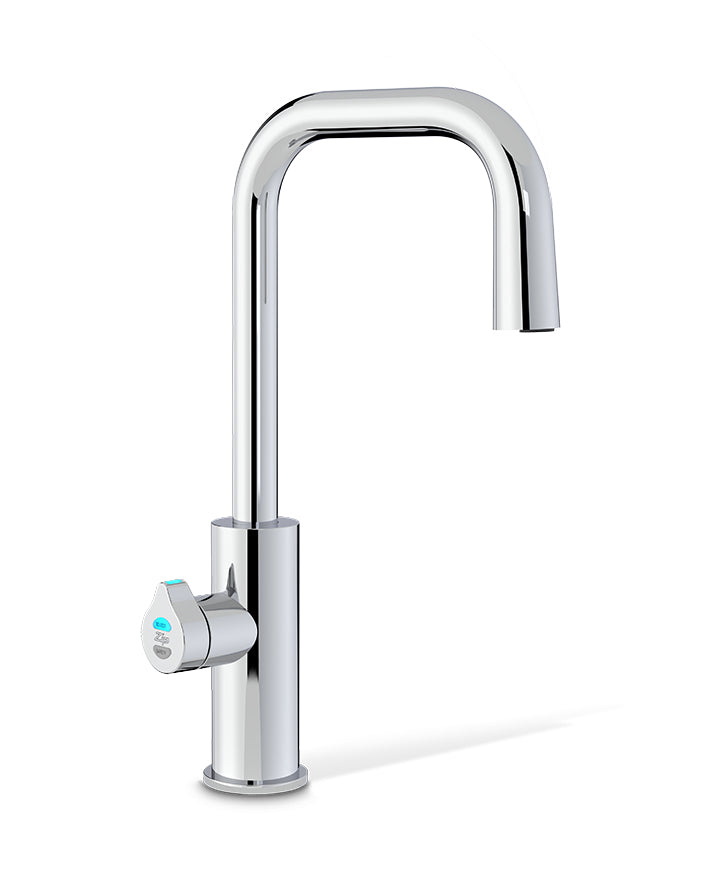

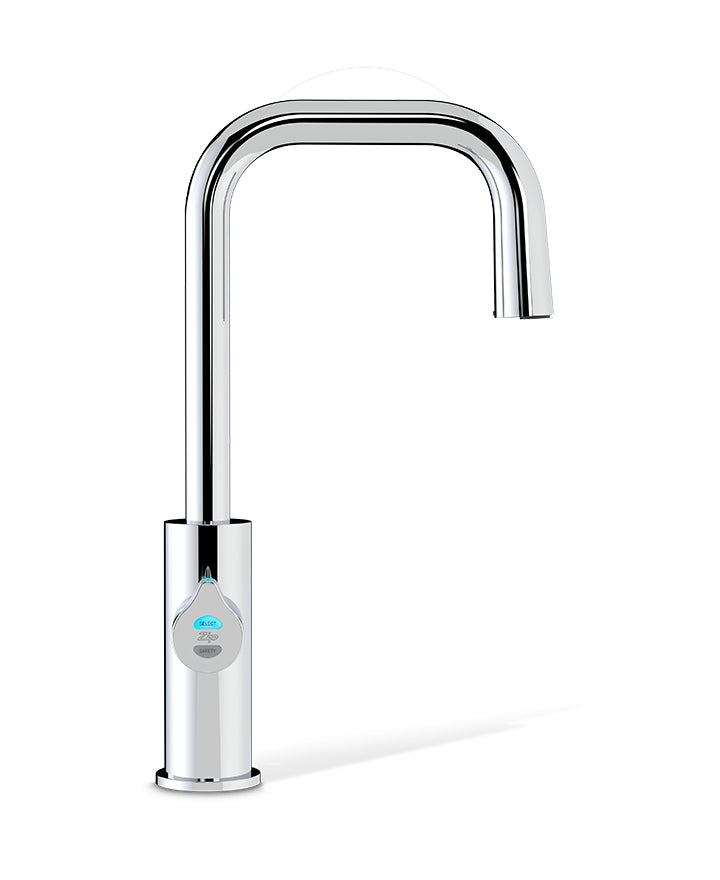

HydroTap G5 BC Cube Plus Chrome
$5,999.00
Fast delivery across Australia
30 day return policy
Online chat support
- Description
- Specification
- Manuals
- Brochure
- Installation
- Certifications
Description
Zip HydroTap Design Range Boiling, Chilled, Filtered water tap features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 3 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration.
| Manufacturing Code | H5C784Z00AU |
| Capacity | Residential |
Specification
| Tap | Zip HydroTap Design Range CUBE Plus Tap (Chrome) |
| Water Pressure | Min 170kPa - Max 700kPa |
| Water Connection | 1/2" BSP (G1/2) |
| Water Supply Requirements | Cold |
| Water Valves | Integrated 500kPa Pressure limiting valve and Dual Check Valve |
| Power Rating | 1.44kW 220-240V 50Hz |
| Power Supply | 1 x 10 Amp socket outlet |
| Dimensions | W280mm x D478mm x H333mm |
| Product Approvals | WaterMark, RCM, ARC |
| Warranty | 5 years (appliance warranty 36 months plus additional 24 months tank warranty) |
Brochure
Installation
Installation Requirements
- Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.
- You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.
- Discrete cabinetry cut outs are required for airflow. 40mm minimum clearance on cupboard base overhang required otherwise alternative installation options are available.
- Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
- If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
