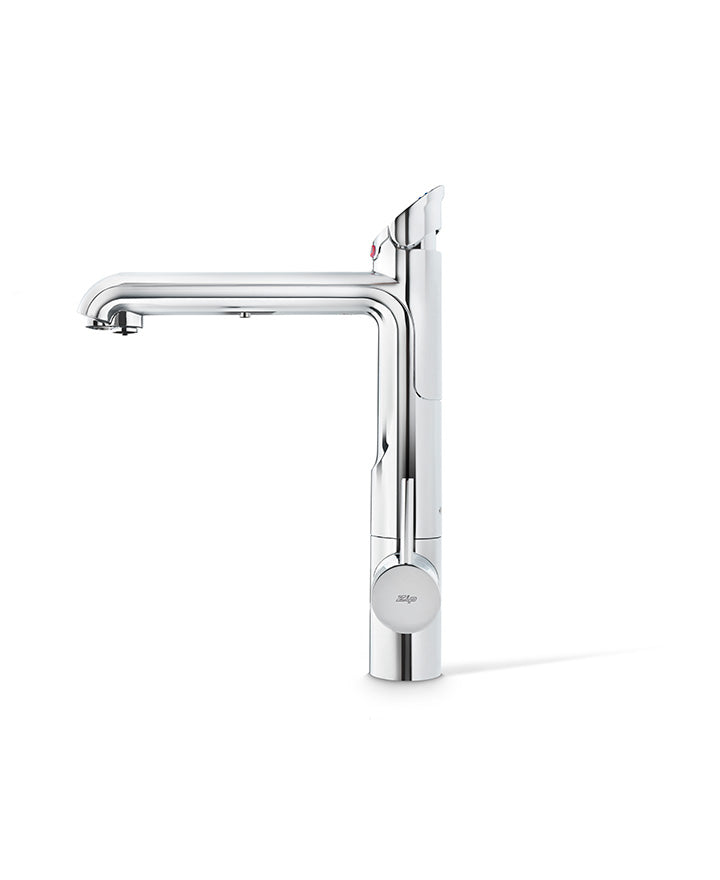

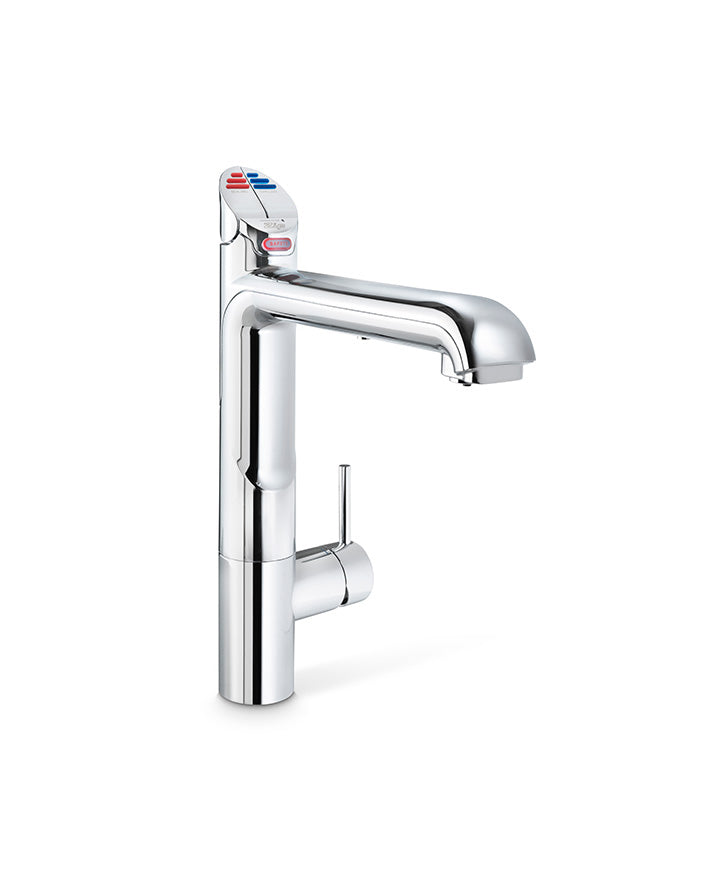

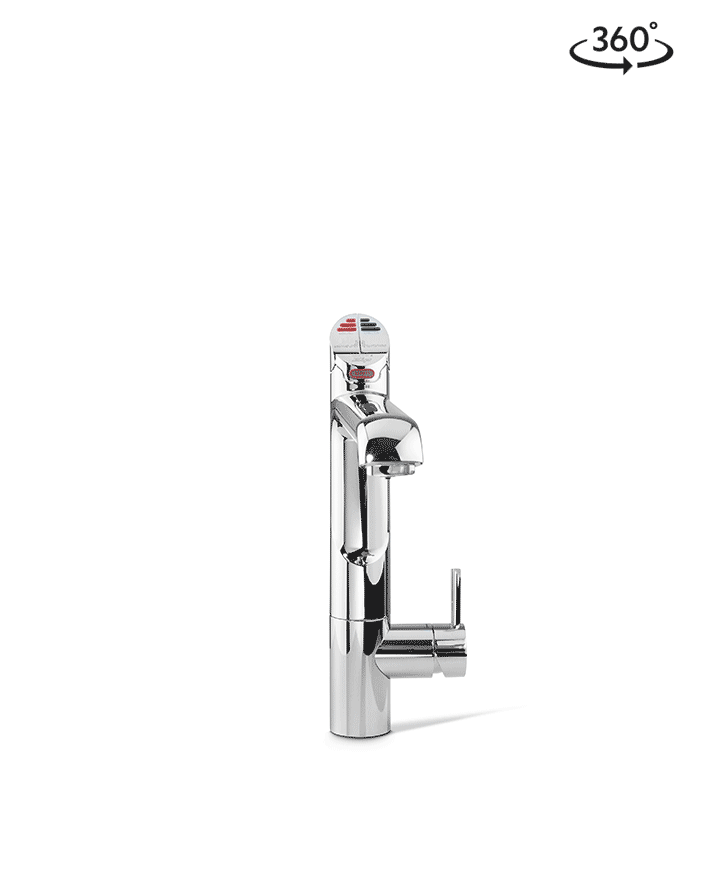

HydroTap G5 BCHA100 Classic All-in-One Chrome
Chrome
$8,900.00
Skip to product information
HydroTap G5 BCHA100 Classic All-in-One Chrome
$8,900.00
Product details
Boiling Chilled
Zip HydroTap G5 BCHA100 Classic All-in-One Chrome Boiling, Chilled, Filtered water plus Hot and Cold washing up water from a single tap (cold water supply required). The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including 2 boiling water safety modes, 3 energy saving modes including ON/OFF timers and sensor activated 'sleep when it's dark', 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration. Easy to install integrated ventilation tray included.
Manufacturing Code H5A724Z00AU Capacity Commercial Number of People 61-100 Boiling Cups per Hour 240 Chilled Cups per Hour 175 Specification
Tap Zip CLASSIC All-in-One Tap (Chrome) Water Pressure Min 300kPa - Max 700kPa Water Connection 1/2" BSP (G1/2) Water Supply Requirements Cold Water Valves Integrated 500kPa Pressure limiting valve and Dual Check Valve Power Rating 2.1kW 220-240V 50Hz Booster Power Rating Zip HydroTap Booster 2.2kW 220-240V 50/60Hz Power Supply 2 x 10 Amp socket outlets Dimensions W395mm x D487mm x H333mm Product Approvals WaterMark, RCM, ARC Wels Rating 5 Star, 5 litres Warranty 5 years (appliance warranty 36 months plus additional 24 months tank warranty) Manuals
Brochure
Installation
Installation Requirements
- Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.
- You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.
- Discrete cabinetry cut outs are required for airflow. 40mm minimum clearance on cupboard base overhang required otherwise alternative installation options are available.
- Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
- If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
Certifications
MicroPurity Performance Data Sheet
HydroTap Clean Safety Data Sheet
