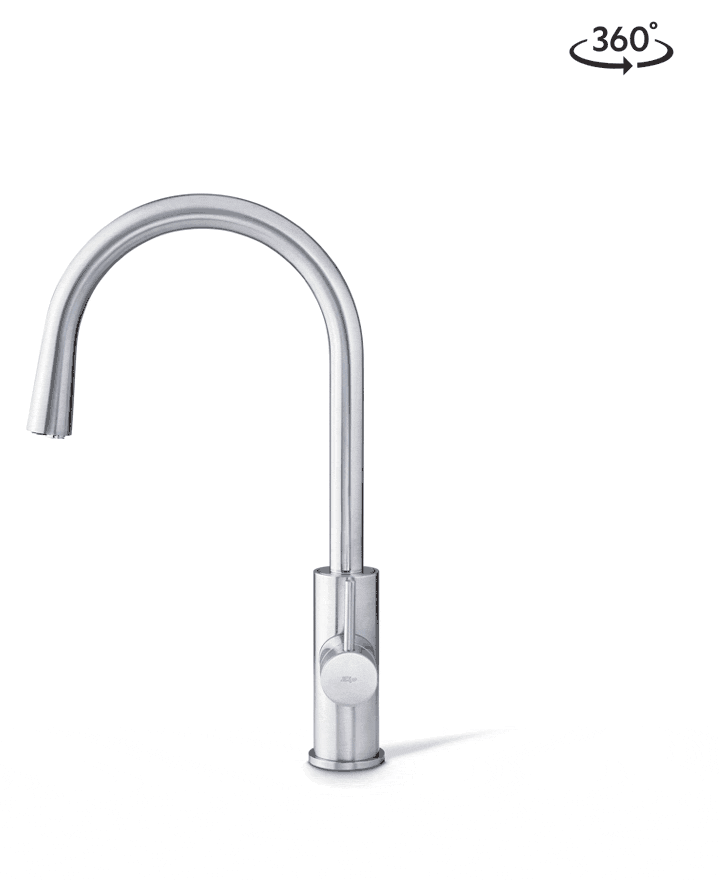

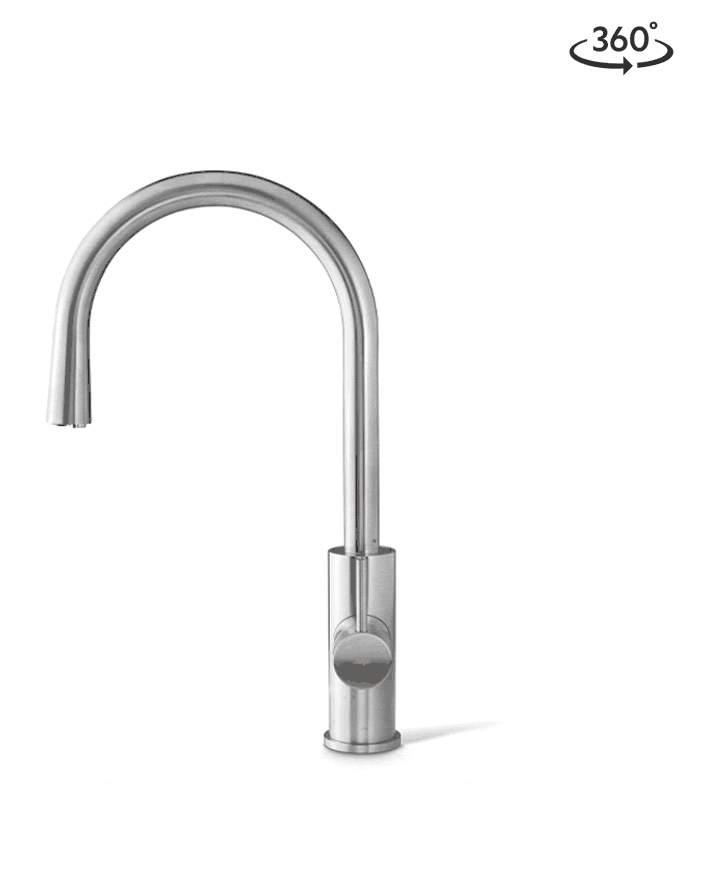

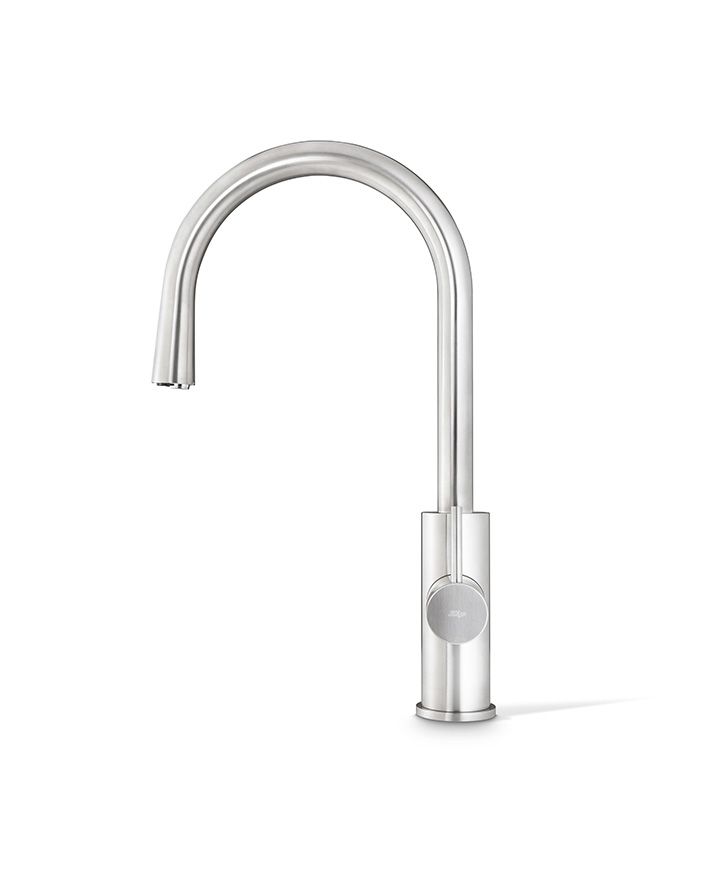

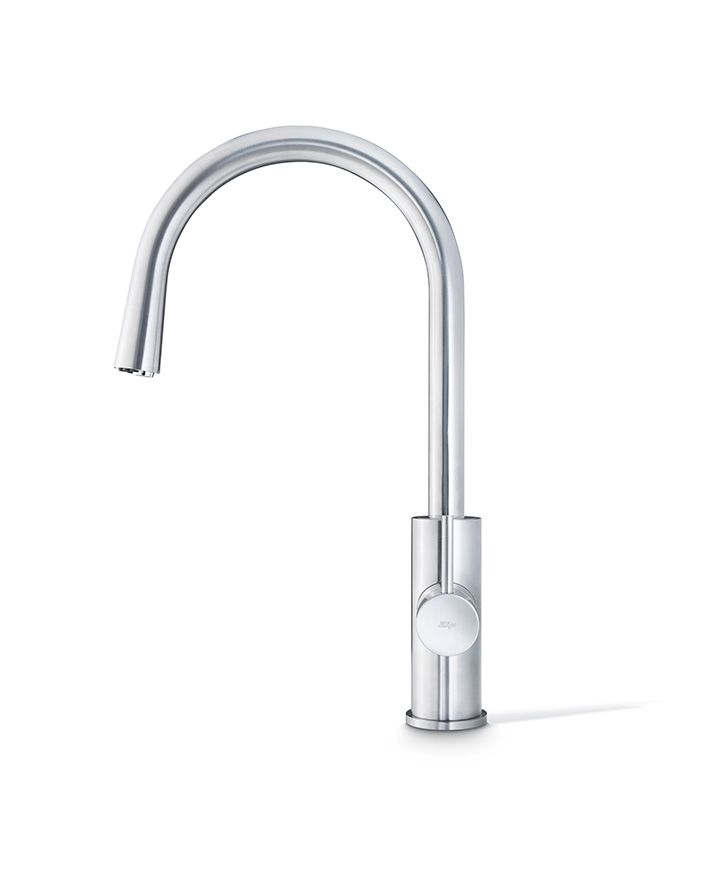

HydroTap G5 BCHA20 Celsius All-In-One Arc Chrome
Chrome
$7,800.00
Skip to product information
HydroTap G5 BCHA20 Celsius All-In-One Arc Chrome
$7,800.00
Product details
HydroTap G5 BCHA20 Celsius All-In-One Arc Chrome
Boiling Chilled
Zip HydroTap Design Range CELSIUS All-In-One Boiling & Chilled Filtered water, plus Hot and Cold washing up water from a single tap (hot and cold water supply required). The system features a single under bench command centre including full colour interactive touch screen display with pin code protection and customisable settings including boiling water safety mode, 2 energy saving modes including ON/OFF timers and 2 hour sleep mode, 'Quiet' mode with automated intelligent fan speed adjustment, antimicrobial protection impregnated into key water paths for enhanced hygiene, 100% water efficient air cooled technology, and 0.2 micron water filtration.
Manufacturing Code H57702Z00AU Capacity Commercial Number of People 1-20 Boiling Cups per Hour 100 Chilled Cups per Hour 75 Specification
Tap Zip HydroTap Design Range CELSIUS All-In-One ARC Tap (Chrome) Water Pressure Min 170kPa - Max 700kPa Water Connection 1/2" BSP (G1/2) Water Supply Requirements Cold and Hot Water Valves Integrated 500kPa Pressure limiting valve and Dual Check Valve Power Rating 1.9kW 220-240V 50Hz Power Supply 1 x 10 Amp socket outlet Dimensions W280mm x D478mm x H333mm Product Approvals WaterMark, RCM, ARC Wels Rating 5 Star, 6.0 litres Warranty 5 years (appliance warranty 36 months plus additional 24 months tank warranty) Manuals
Brochure
Installation
Installation Requirements
- Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.
- You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.
- Discrete cabinetry cut outs are required for airflow. 40mm minimum clearance on cupboard base overhang required otherwise alternative installation options are available.
- Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
- If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
Certifications
MicroPurity Performance Data Sheet
HydroTap Clean Safety Data Sheet
