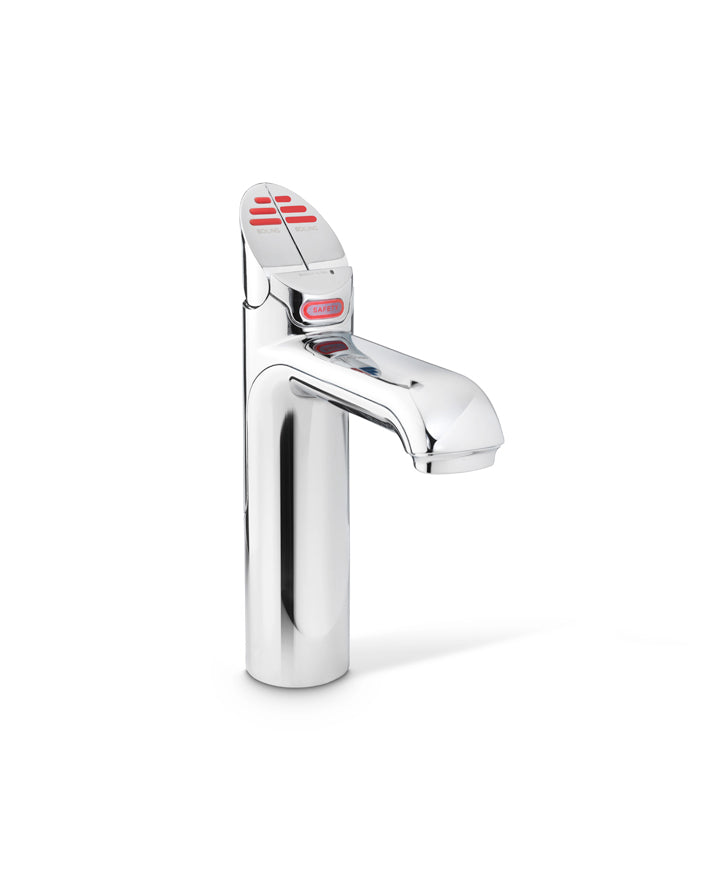

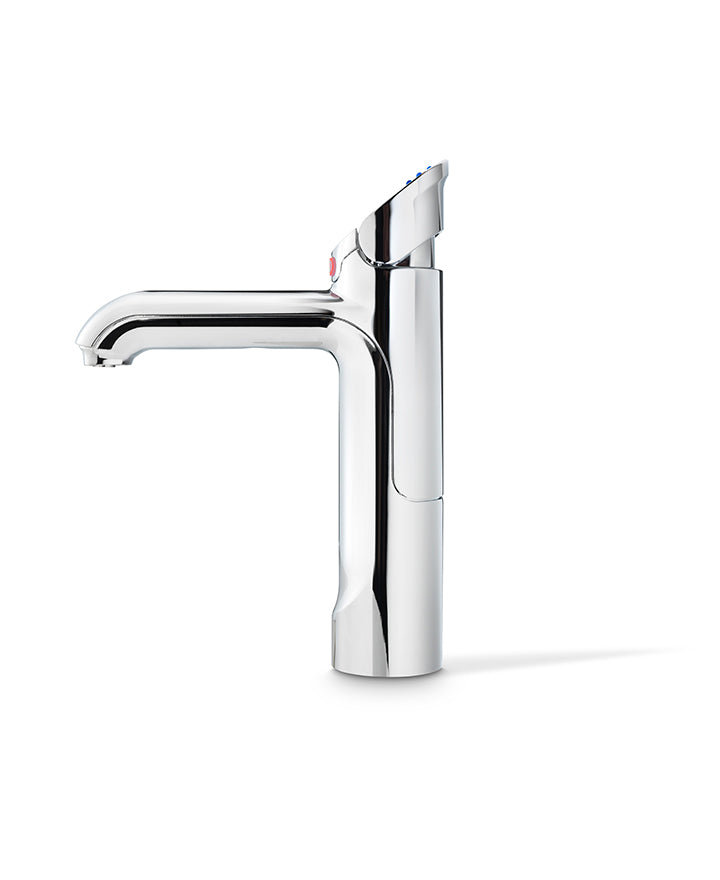

HydroTap Miniboil B Classic Tap Chrome
$2,899.00
Fast delivery across Australia
30 day return policy
Online chat support
- Description
- Specifications
- Manuals
- Brochure
- Installation
- Certifications
Description
Zip HydroTap Miniboil, Boiling, Filtered water appliance provides instant access to filtered boiling water from a single, compact appliance which is perfect for smaller home kitchens.
| Manufacturing Code | MB1717Z00 |
| Capacity | Residential |
Specifications
| Tap | Zip HydroTap Miniboil CLASSIC Tap (Chrome) |
| Water Pressure | Min 170kPa - Max 700kPa |
| Water Connection | 1/2" BSP (G1/2) |
| Water Supply Requirements | Cold |
| Water Valves | Integrated 500kPa Pressure limiting valve and Dual Check Valve |
| Power Rating | 1.35kW 220-240V 50Hz |
| Power Supply | 1 x 10 Amp socket outlet |
| Dimensions | W212mm x D269mm x H338mm |
| Product Approvals | WaterMark, RCM |
| Warranty | 12 months |
Brochure
Installation
Installation Requirements
- Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.
- You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1.5 metres of the product.
- Discrete cabinetry cut outs are required for airflow. 40mm minimum clearance on cupboard base overhang required otherwise alternative installation options are available.
- Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.
- If you live in a hard water area, we recommend installation of a Zip scale filtration kit.
