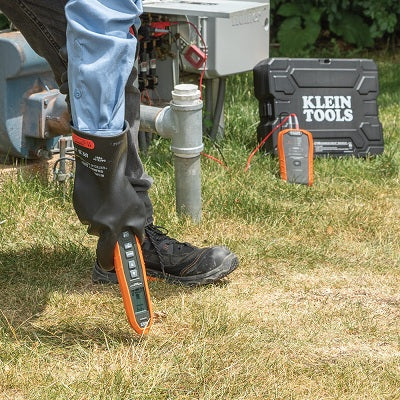

  • Person using a device on grass with Klein Tools equipment in the background
  • Klein Tools electrical tester with features listed on a white background
  • Person wearing a yellow glove holding an orange digital multimeter in front of electrical panels.
  • Orange and black device with textured surface on a white background
  • Person using a device to trace breakers and wires in various locations with text overlay.

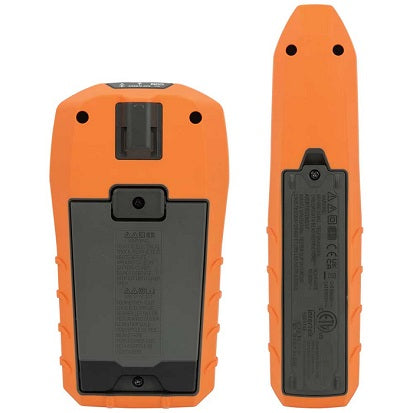

  • Two Klein Tools electrical testing devices on a white background
  • Two orange battery packs with connectors on a white background
Klein Tools ET450 Advanced Circuit Tracer Kit – Locate Energized & De-energized Wires with Precision

Klein Tools ET450 Advanced Circuit Tracer Kit – Locate Energized & De-energized Wires with Precision

$379.00

Fast delivery across Australia

30 day return policy

Online chat support

Description

Model Number: ET450

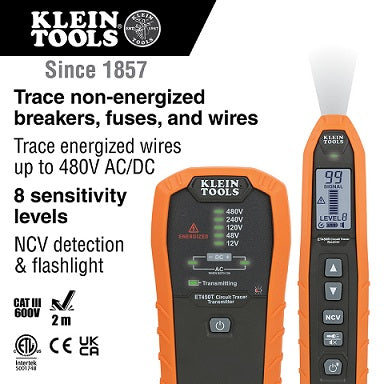

  • The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

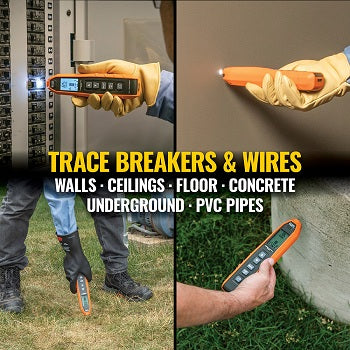

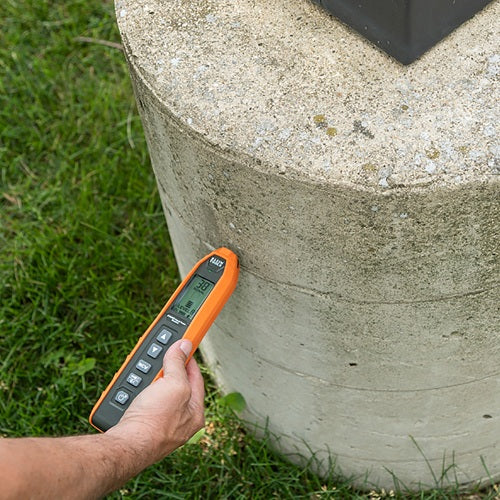

  • Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
  • Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
  • Audible beep and visual indicators on receiver denotes signal strength

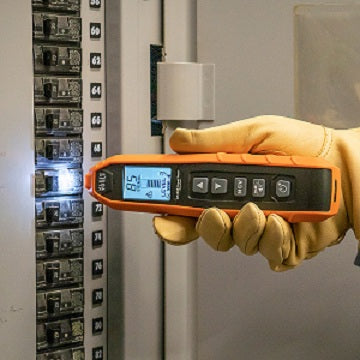

  • Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized

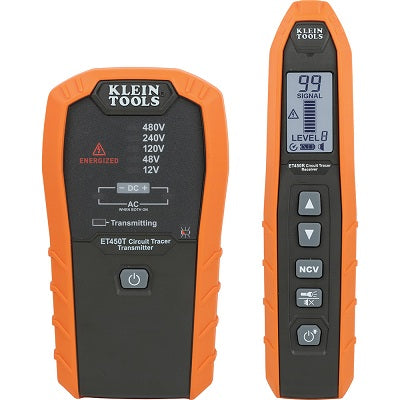

  • Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V

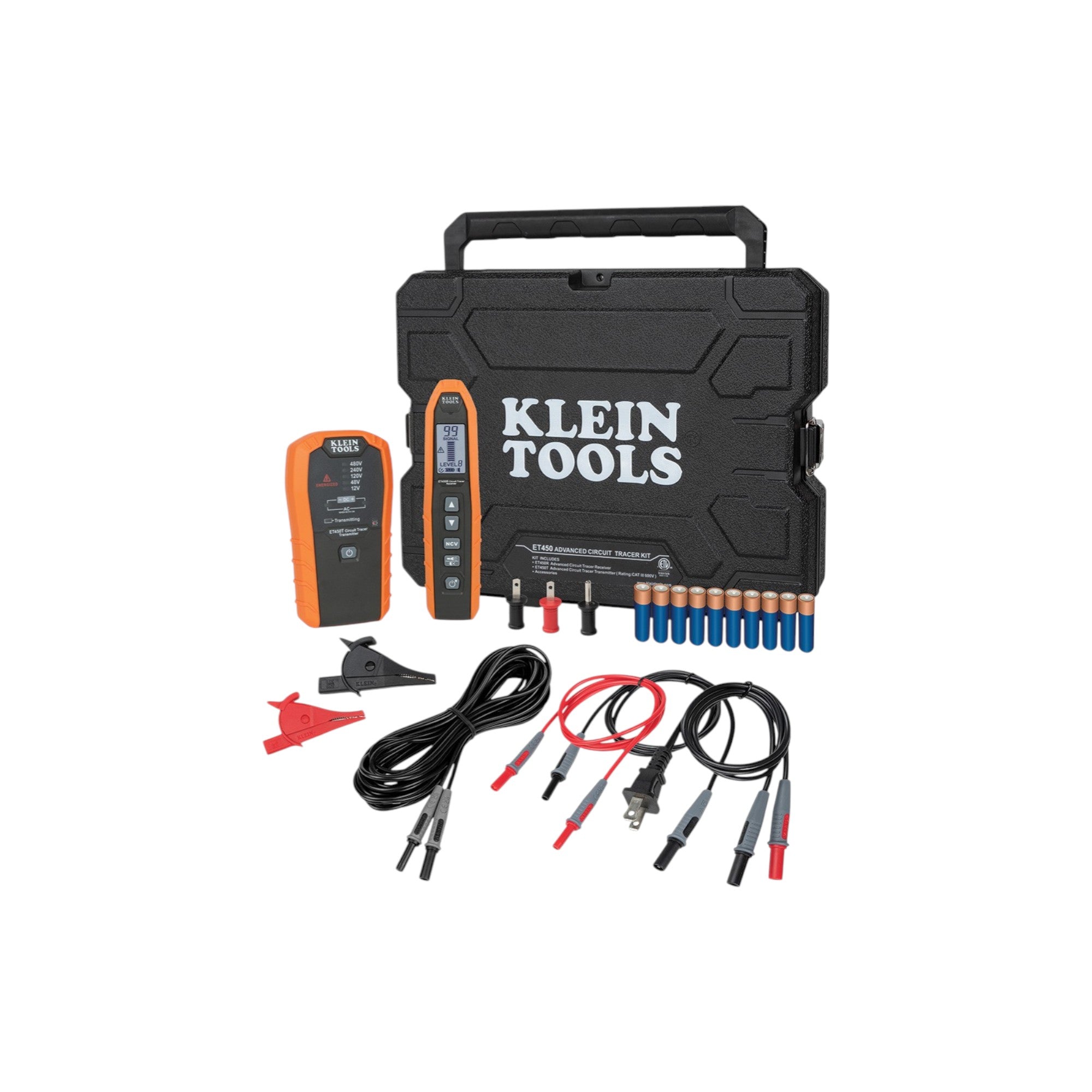

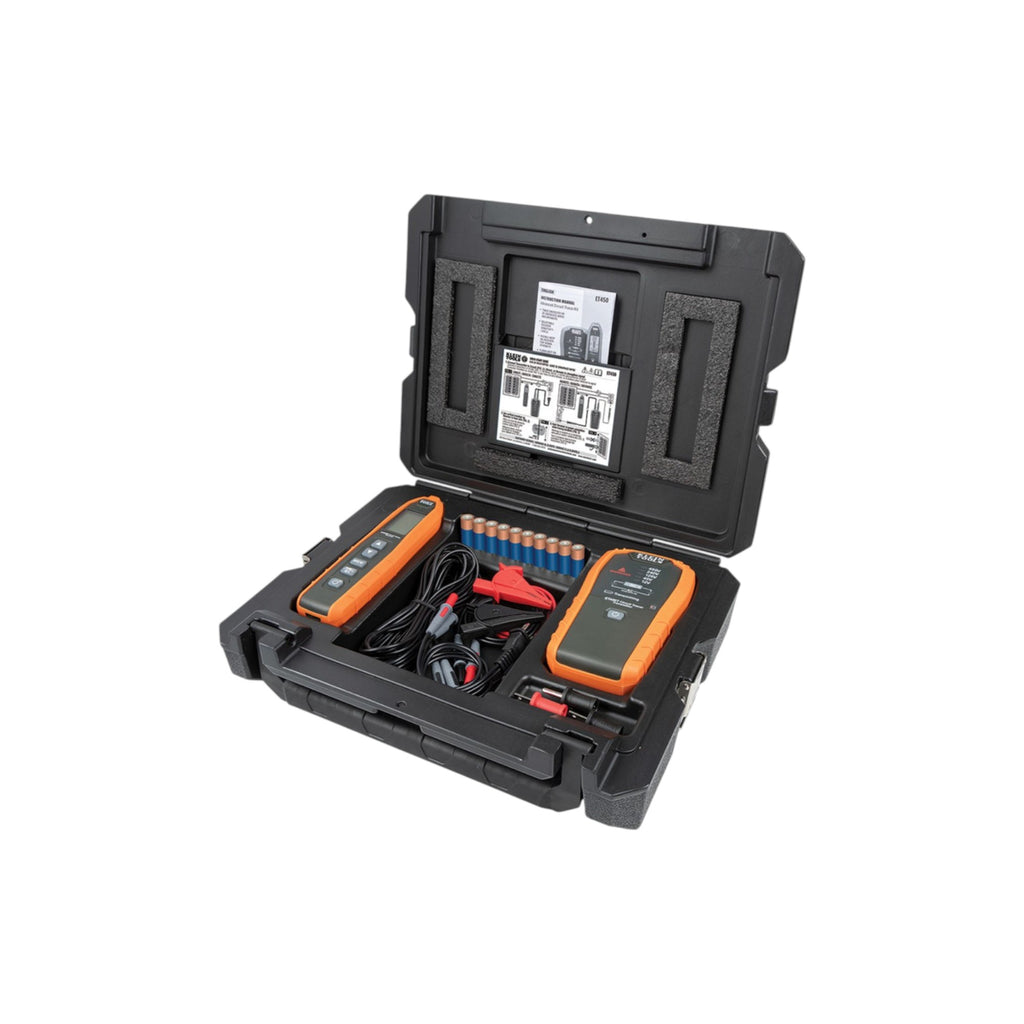

  • Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case
Specifications
Type Circuit Tracer
Application Trace Energized and Non-Energized Breakers, Fuses, and Wires
Special Features Flashlight and NCV Function on Receiver; Accessories; Hard Case Included
Material ABS and Electronic Components
Batteries Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline
Battery Life Up to 24 hours
Drop Protection 6' (2 m)
Display Receiver: LCD with Backlight
Control Type Transmitter and Receiver
Voltage Indicators External Indicators for 12V, 48V, 120V, 240V, and 480V
Frequency Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz
Ingress Protection IP42
Pollution Degree 2
Tests Continuity No
Integral Lead Storage No
Interchangeable Leads Yes
Lead Lengths 3' (1 m) and 20' (6.1 m)
Standard CAT III 600V
Case Included Yes, Hard Carrying Case
Overall Length Receiver: 7.05" (17.9 cm); Transmitter: 8.72" (22.2 cm)
Overall Height Receiver: 1.84" (4.5 cm); Transmitter: 1.51" (3.9 cm)
Overall Width Receiver: 3.90" (9.9 cm); Transmitter: 2.07" (5.3 cm)
Weight Transmitter: 16.5 oz (470 g); Receiver: 11 oz (312 g)
UPC 092644693380
