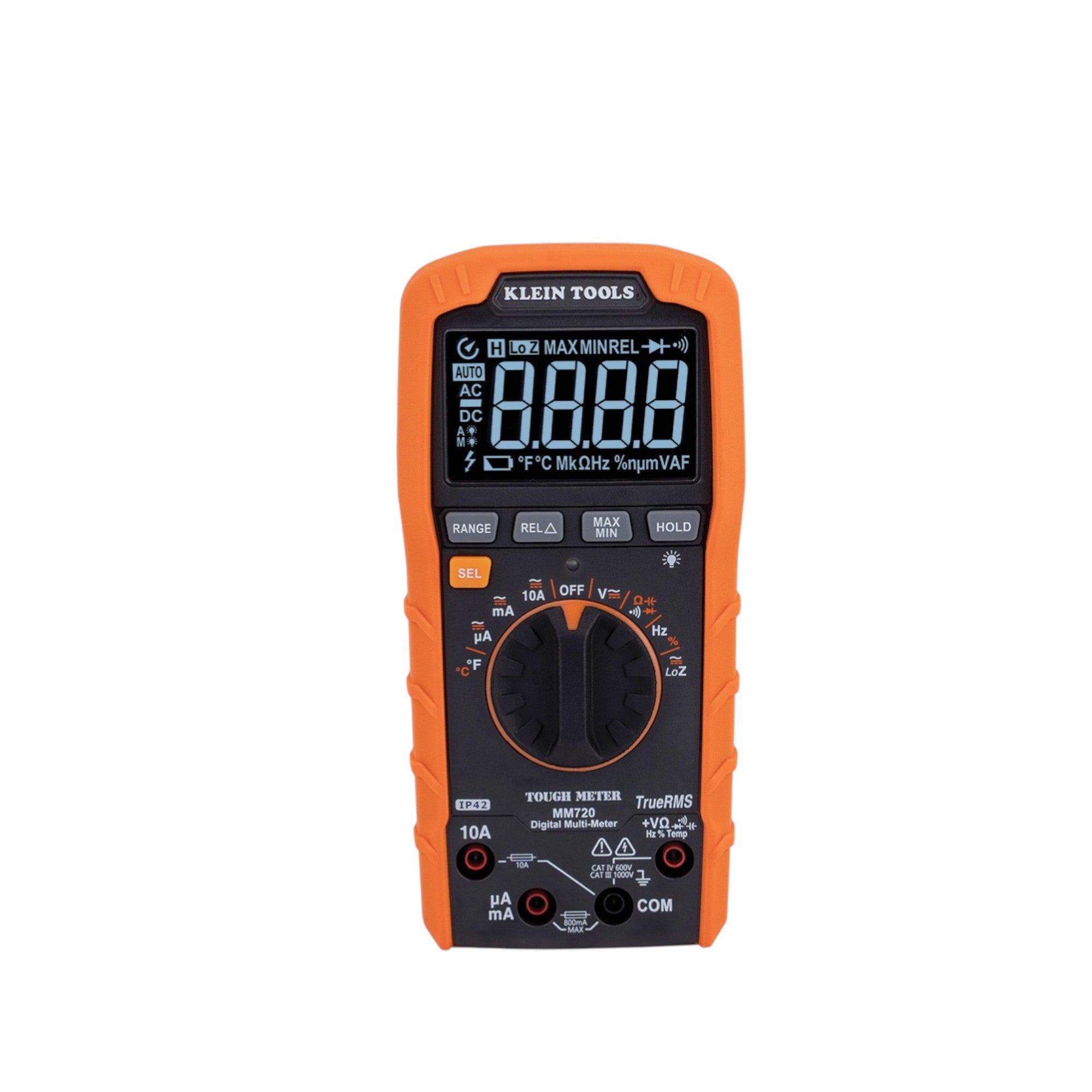

Orange multimeter with digital display on a white background
  • Orange multimeter with digital display on a white background
  • Comparison chart of Klein Tools multimeters with specifications on a white background

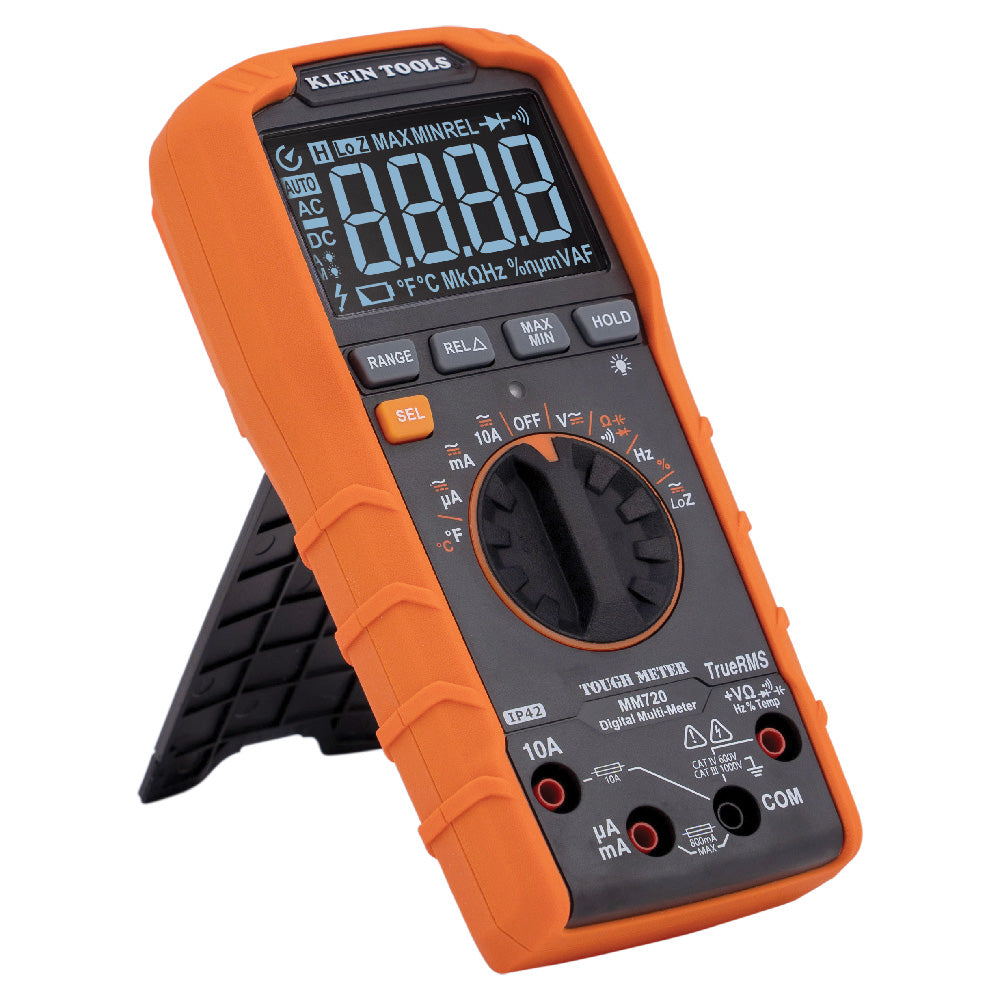

  • Orange and black digital multimeter with a white background

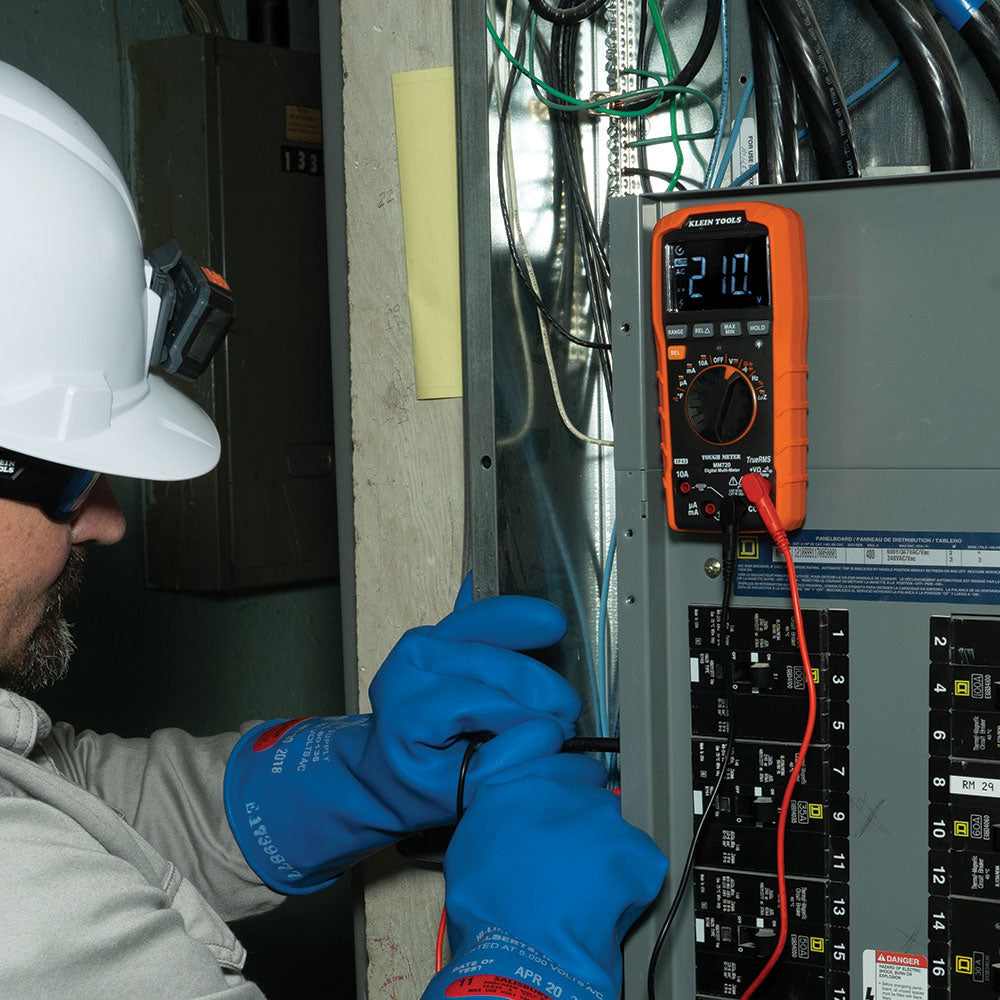

  • Person wearing a hard hat and blue gloves using a multimeter on electrical equipment.

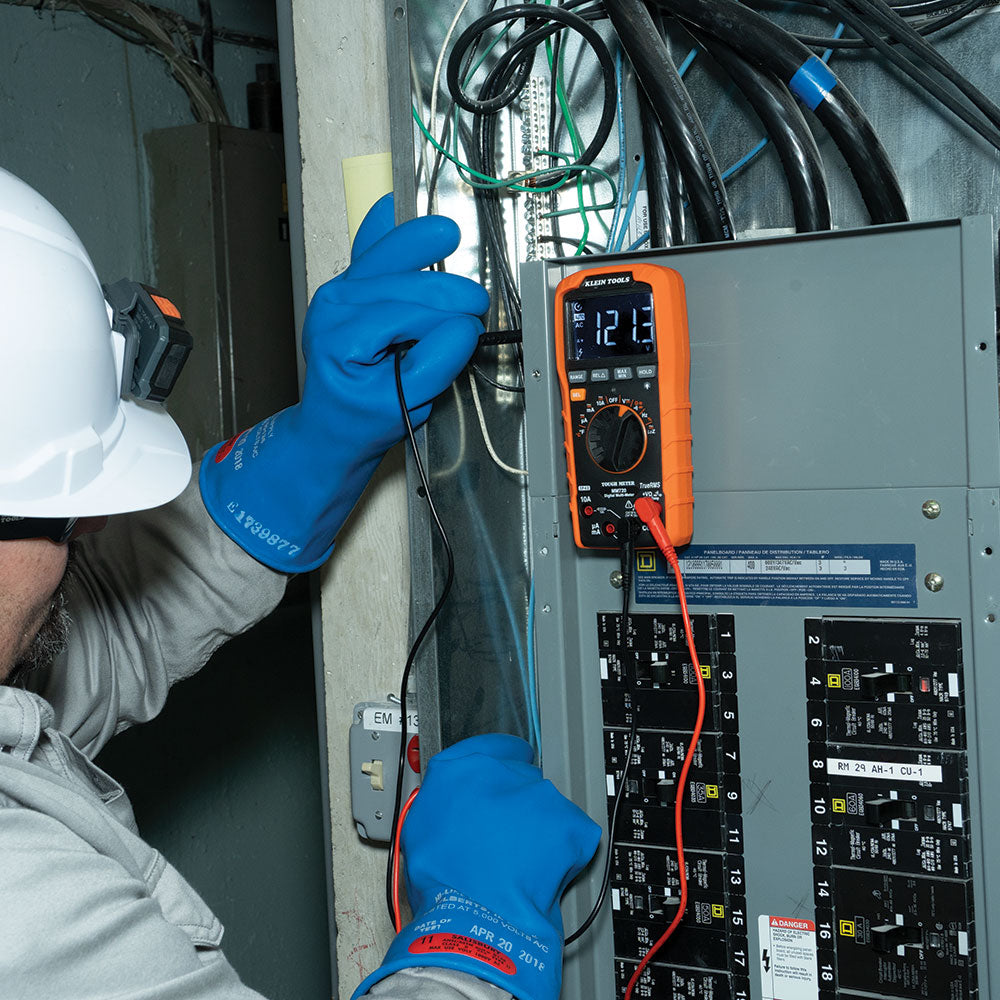

  • Person wearing a hard hat and blue gloves using an orange multimeter on electrical panels.
  • Person wearing a hard hat and gloves working on electrical panel with multimeter
  • Person holding an orange and black device in front of a control panel.

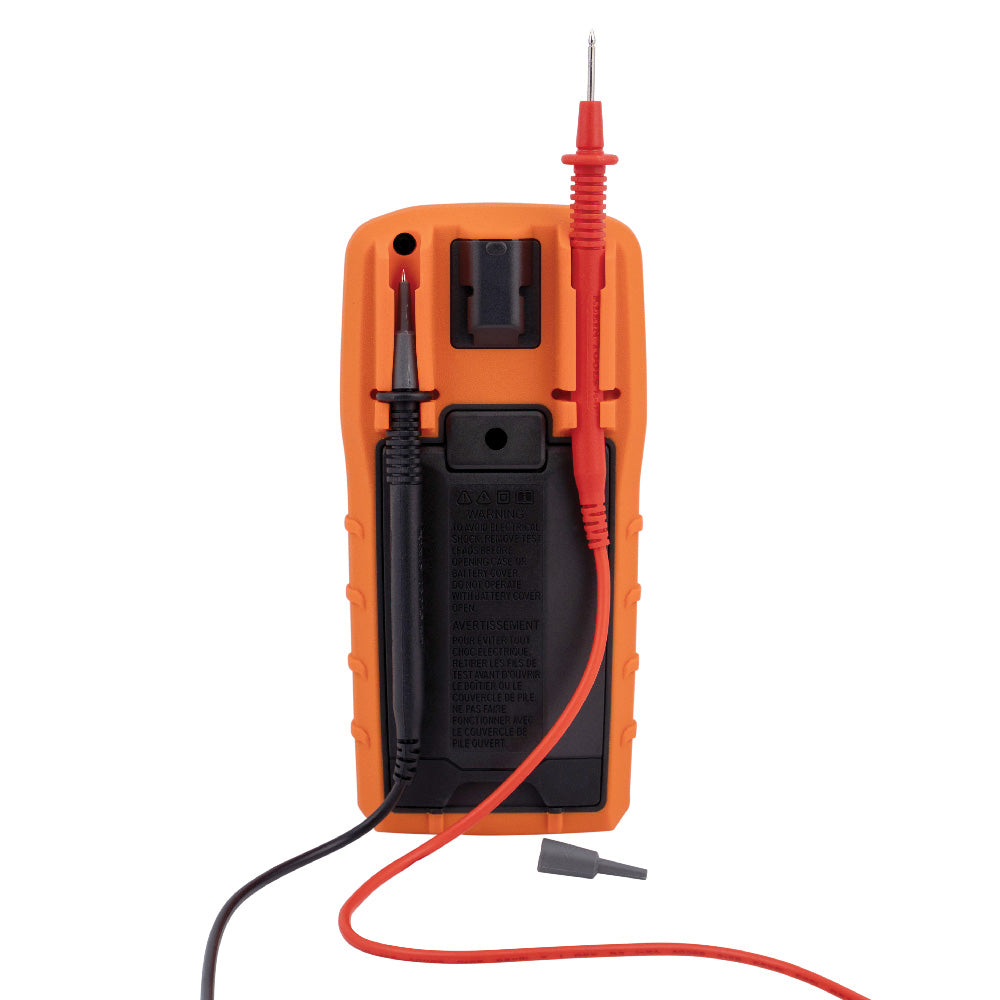

  • Orange multimeter with red and black probes on a white background

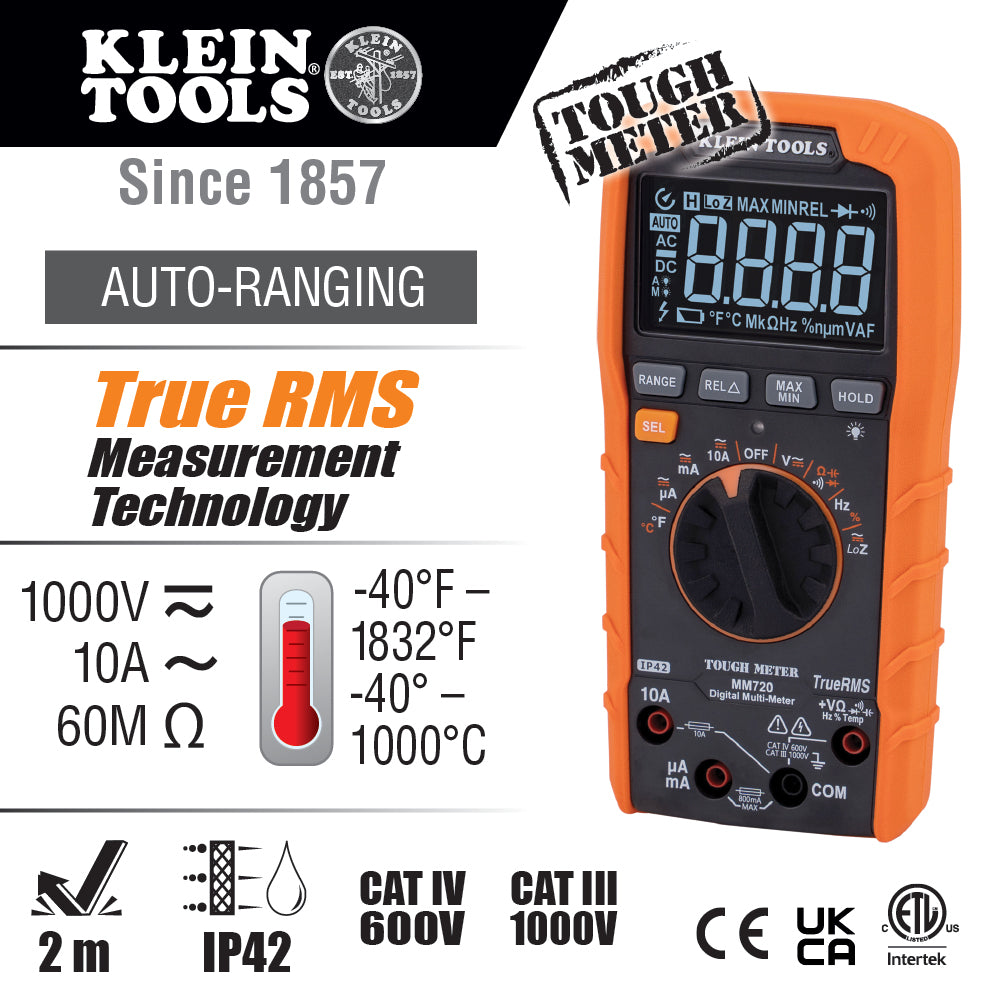

  • Klein Tools multimeter with specifications on a white background

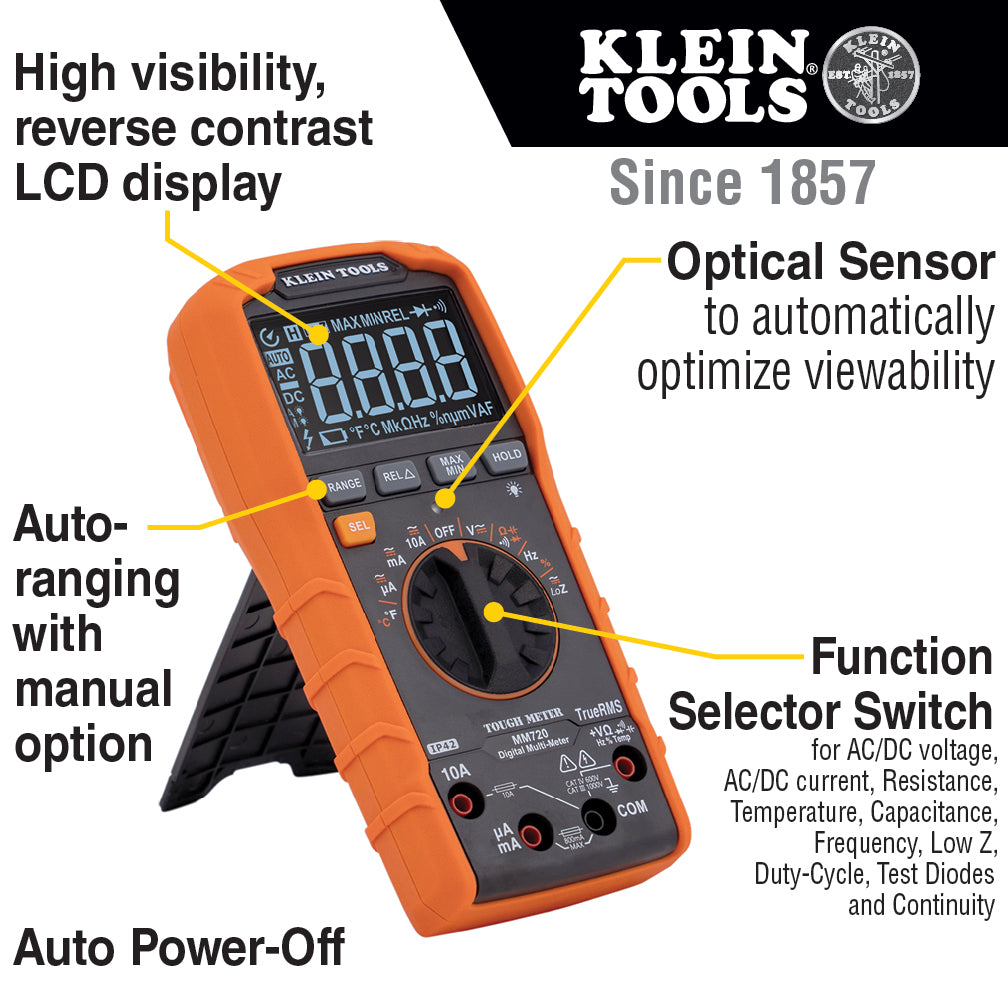

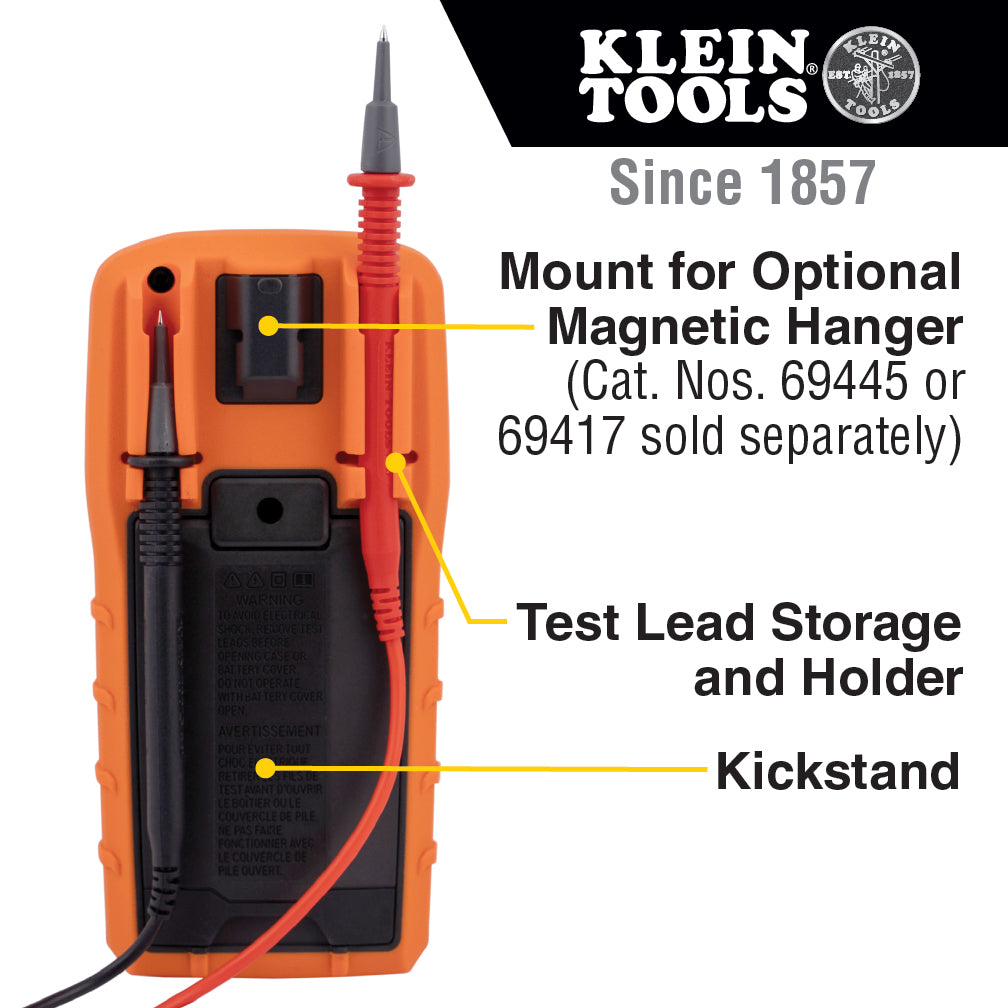

  • Multimeter with features highlighted, branded as Klein Tools.
  • Orange multimeter with labeled features and Klein Tools branding
  • Set of red and black alligator clips on a white background

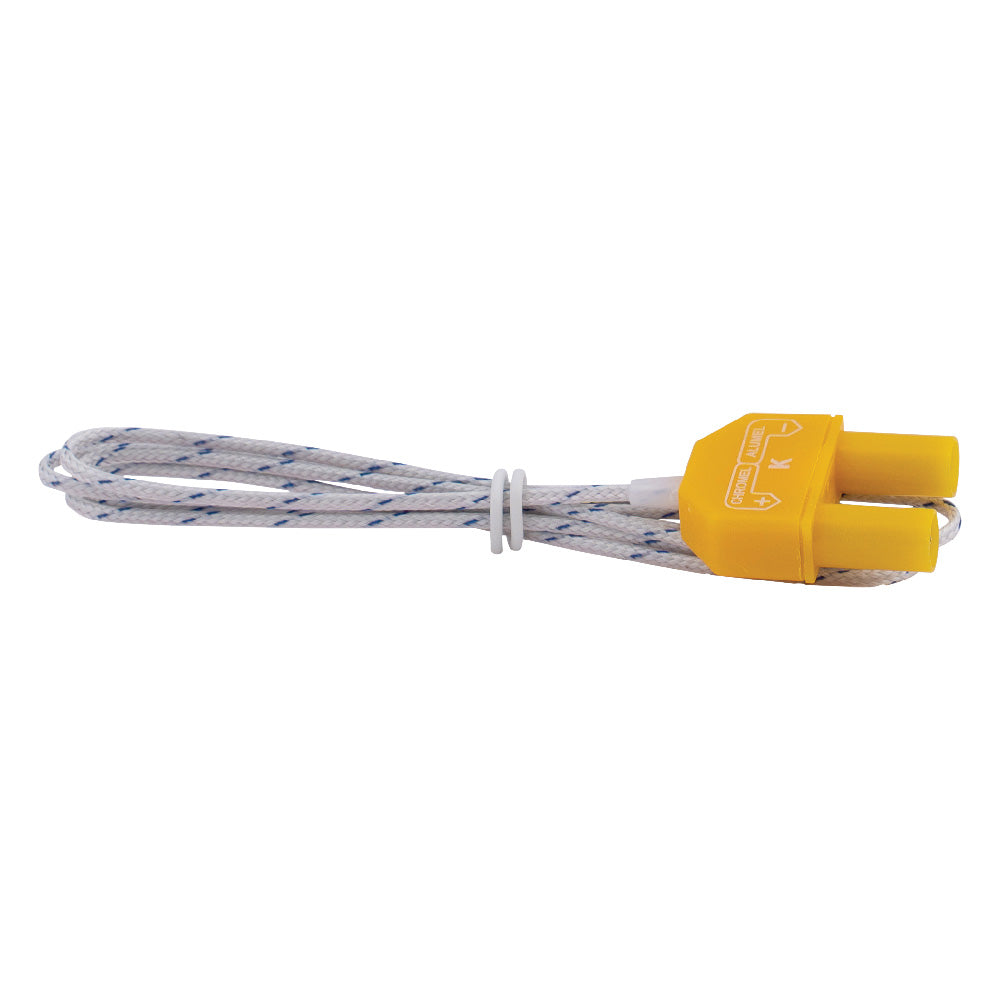

  • Yellow electronic component with a cable on a white background
KLEIN Tools MM720 Digital Multimeter TRMS Auto-Ranging 1000V Temp Low Impedance

KLEIN Tools MM720 Digital Multimeter TRMS Auto-Ranging 1000V Temp Low Impedance

$129.00

Fast delivery across Australia

30 day return policy

Online chat support

Description

Model Number:MM720

  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
  • High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
  • Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
  • Low battery indicator and easily accessible battery and fuse compartment
  • Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42
  • Includes carrying pouch, test leads, thermocouple with adapter, and batteries
  • CAT IV 600V Safety Rating
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
Brochure

Brochure

Specifications
Type Digital Multimeter
Application Testing and Measuring Voltage
Special Features High-Visibility Display with Optical Sensor;
Auto-Range;
Min/Max/Relative;
Low Impedance (LoZ) Mode;
Auto Power-Off;
Data Hold
Material ABS, Electrical Components
Batteries 2 x AAA
Drop Protection 6.6' (2 m)
Display 6000 Count LCD
Color Orange/Black
Functions Measures up to 1000 VAC/DC Voltage,
10A AC/DC Current,
60MΩ Resistance,
Temperature,
Capacitance,
Frequency,
Duty-Cycle,
Diodes,
Continuity
Voltage 1000V AC/DC
Frequency 1 Hz - 500 KHz
Current 10A AC/DC
Capacitance 6000 µF
Ohms (Resistance) 60MΩ
Ingress Protection IP42
Standard CAT IV 600V; CAT III 1000V
Temperature Range -40° to 1832°F (-40° to 1000°C)
Included Items Multimeter,
Carrying Case,

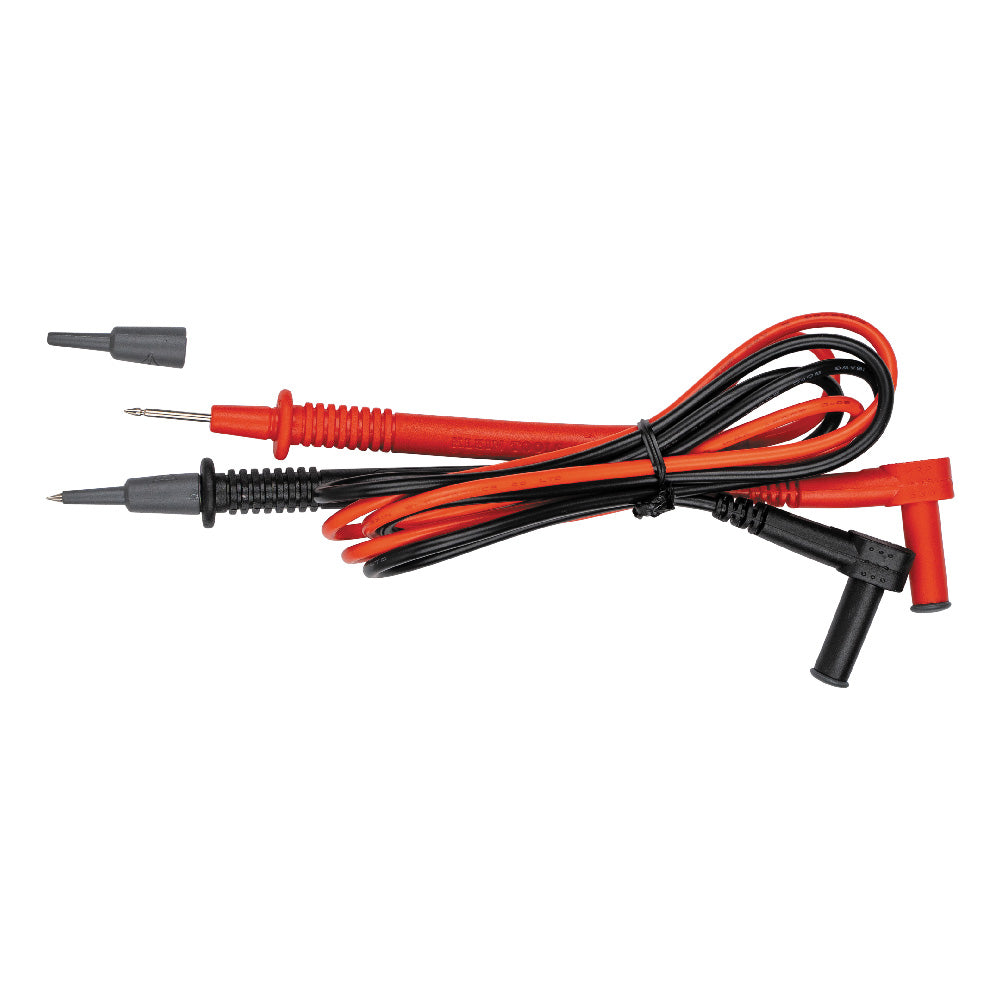

Test Leads with CAT III/CAT IV Safety Caps,
Thermocouple,
Instructions,
2 x AAA Batteries
Overall Length 6.94" (17.6 cm)
Overall Height 1.88" (4.7 cm)
Overall Width 3.37" (8.5 cm)
Weight 12.2 oz (345 g)
UPC 092644693762

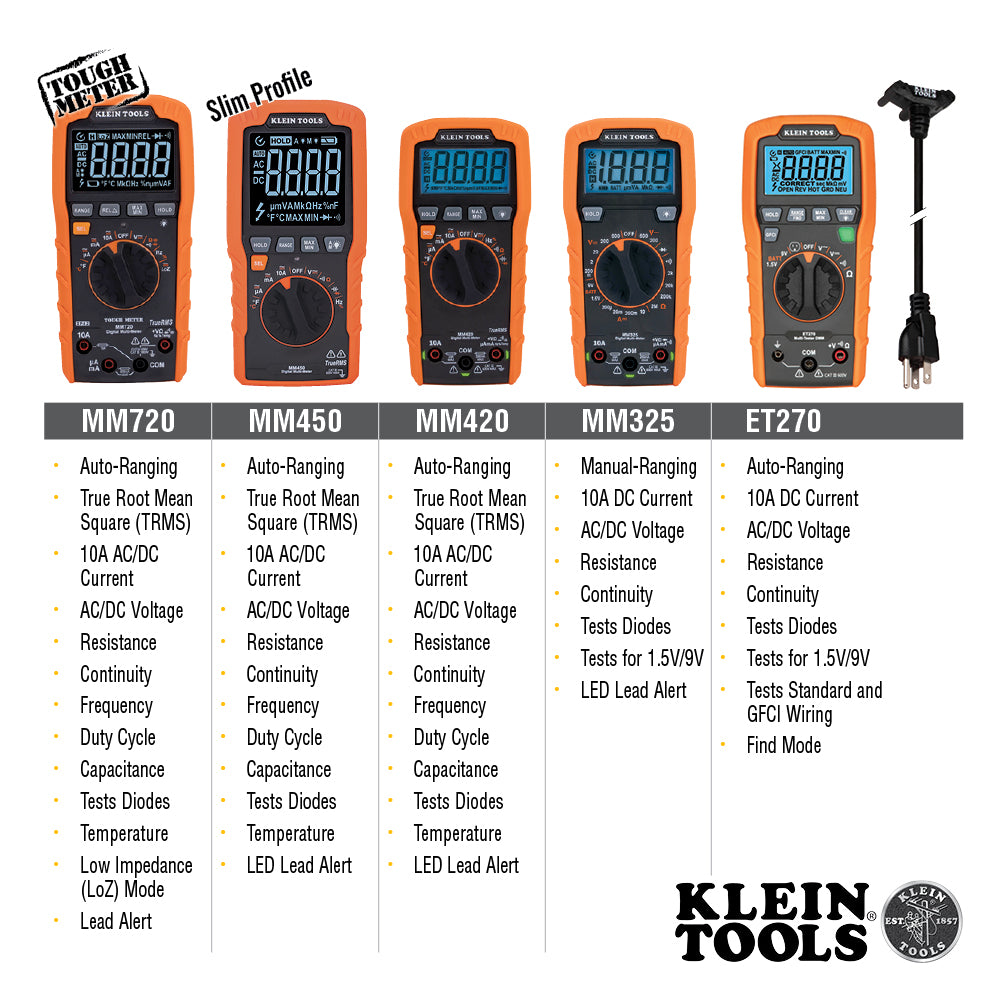

MultiMetre Selection Guide

MultiMetre Selection Guide

Instruction Manual



Installation Layout 3D (DWG).
