Klein Tools Scout Pro 3 Cable Tester Kit – VDV501-852 with Locator Remotes for Voice, Data & Video

Klein Tools Scout Pro 3 Cable Tester Kit – VDV501-852 with Locator Remotes for Voice, Data & Video

$319.00

Fast delivery across Australia

30 day return policy

Online chat support

Description

Model Number:VDV501-852

  • Cable tester for voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

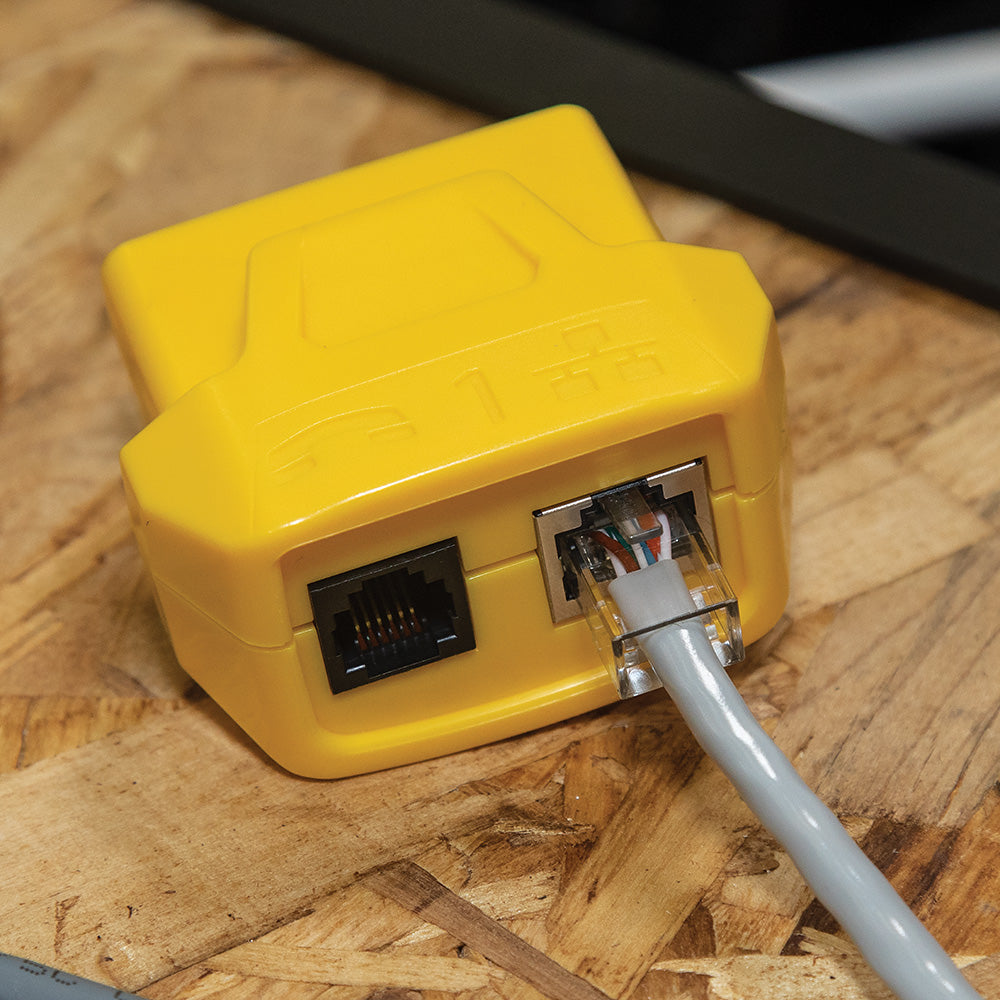

  • Self-storing Test + Map™ Remote (#1) tests, maps and IDs a cable run in a single step

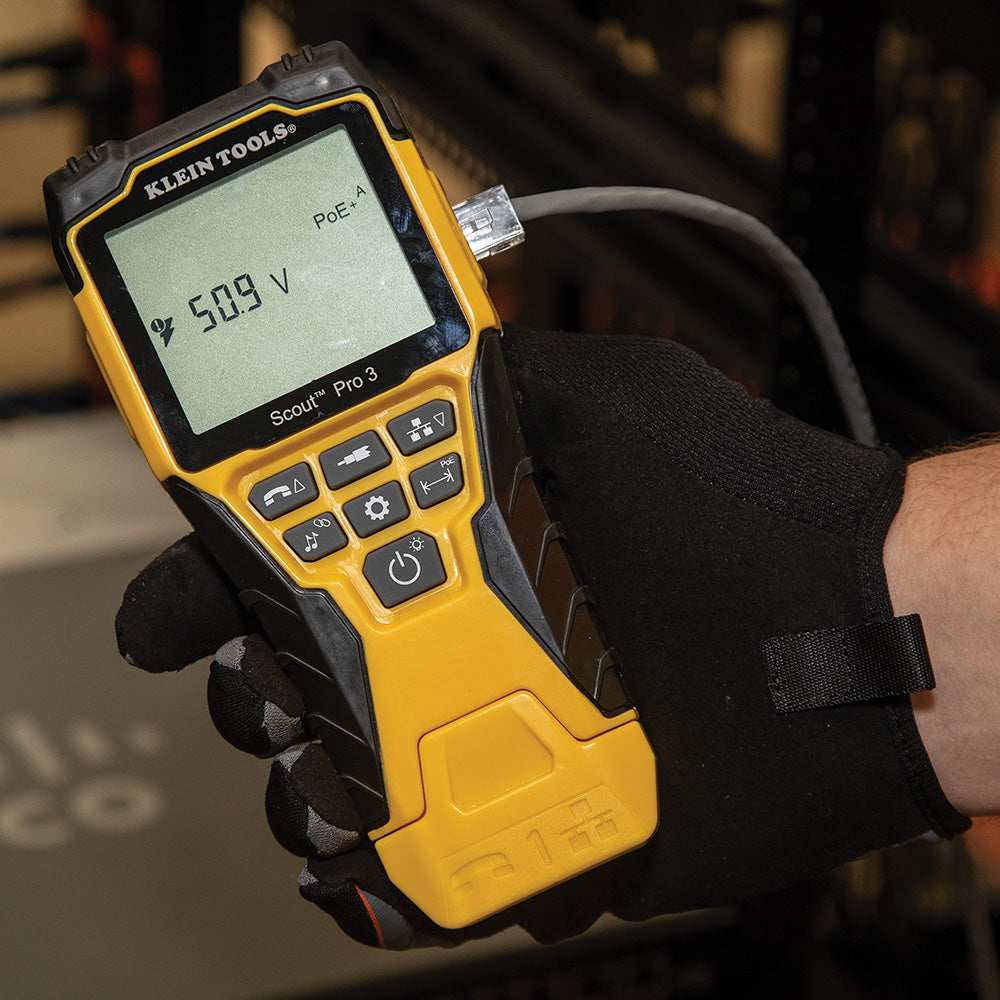

  • Power over Ethernet Tester that displays PoE wire and Voltage
  • Trace cables, wire pairs and individual conductor wires with a tone generator (requires analog probe Cat. No. VDV500-123; sold separately)

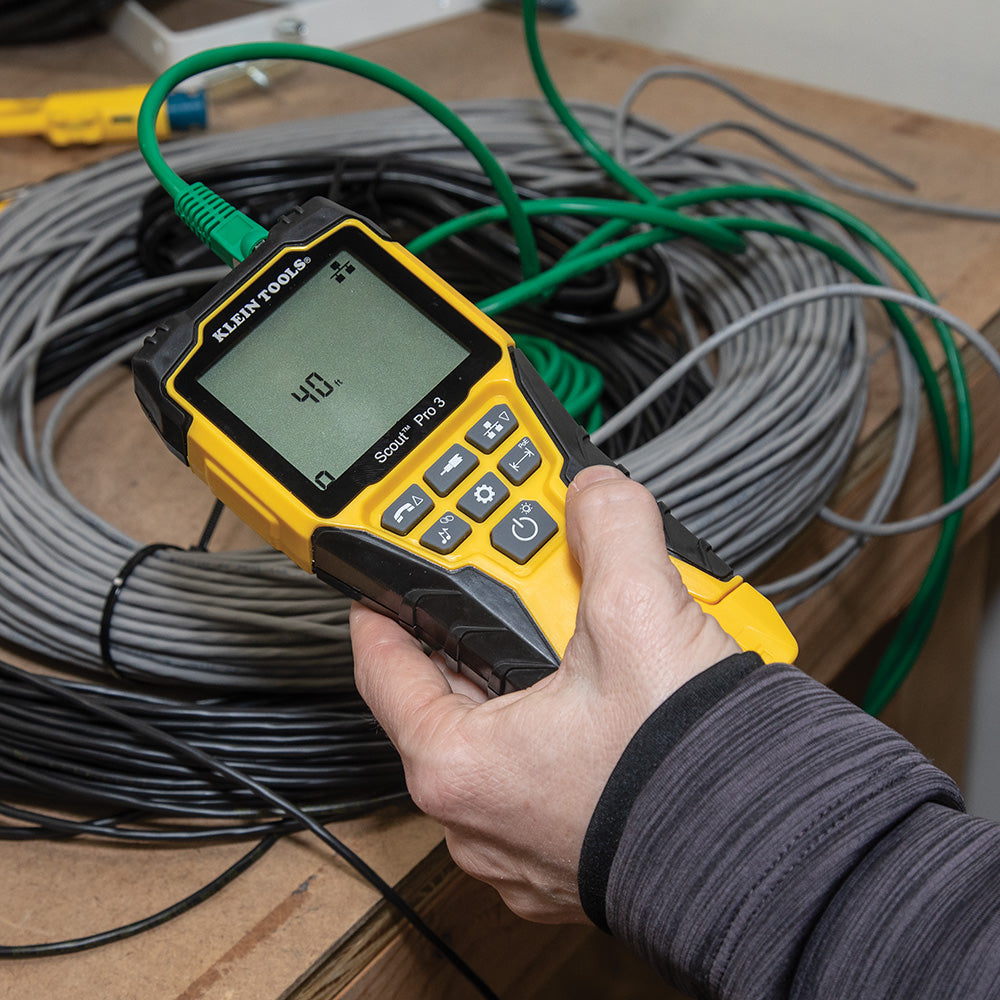

  • Measures cable length up to 2,000 feet (610 m)
  • Identify multiple cable runs with location-mapping remotes Identify

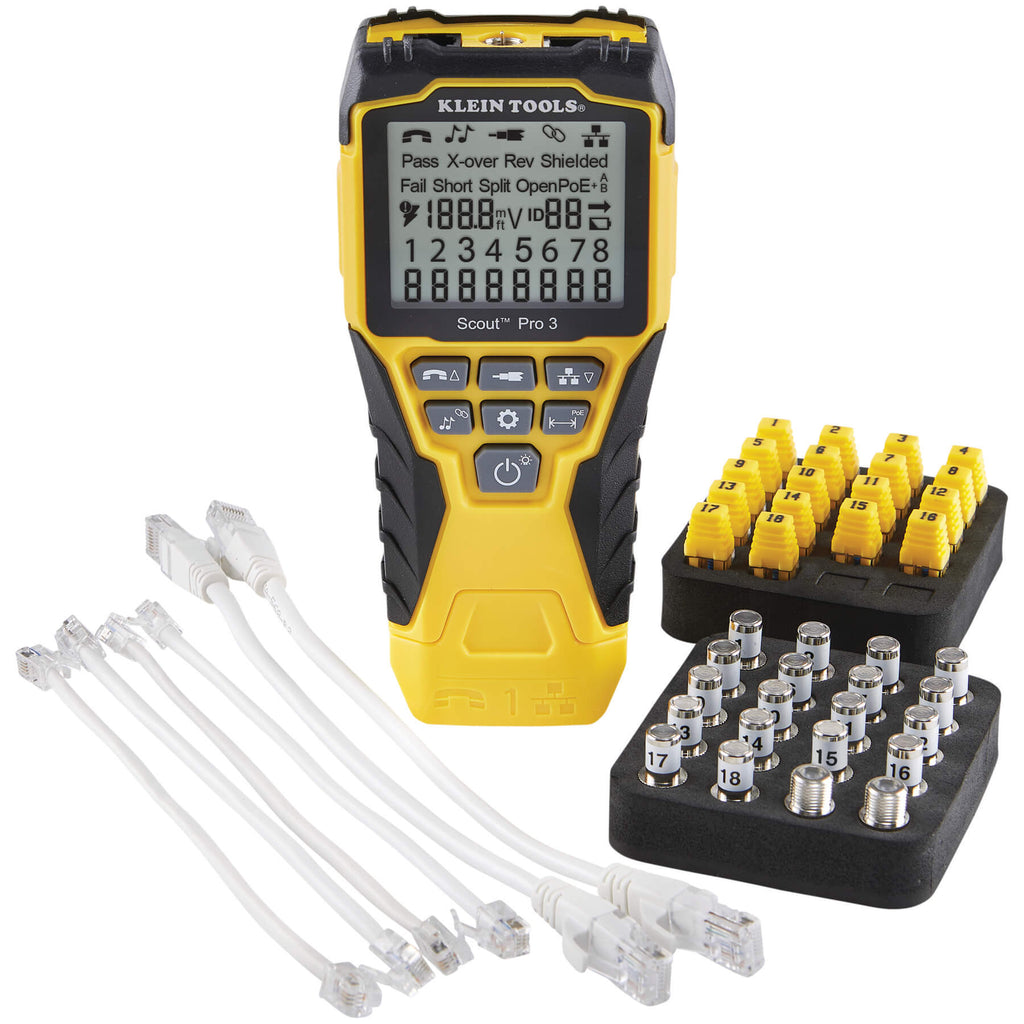

  • Kit includes 18 RJ45 LAN locator remotes, 18 F-coax locator remotes, 2 female-to-female coax barrel adaptors, 2 RJ45, RJ11 and RJ12 jumper cables (6-Inch), carrying case and 9V battery
  • Detect, identify and test Power over Ethernet (PoE)
  • Backlit LCD screen displays cable length, wiremap, cable ID and test results

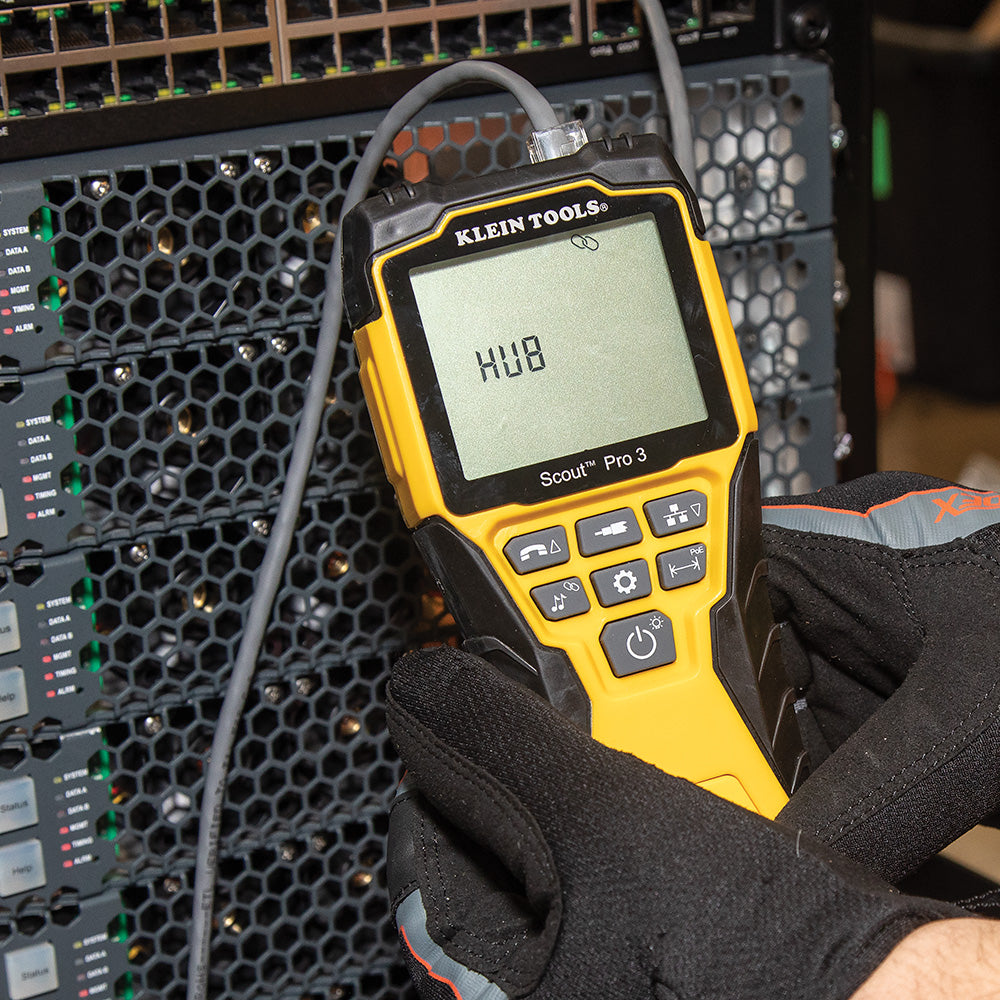

  • Hub blink mode to identify port location on a hub or a switch
  • Identify 18 RJ45 and 18 F-connector drop locations with large easy-to-read numbers

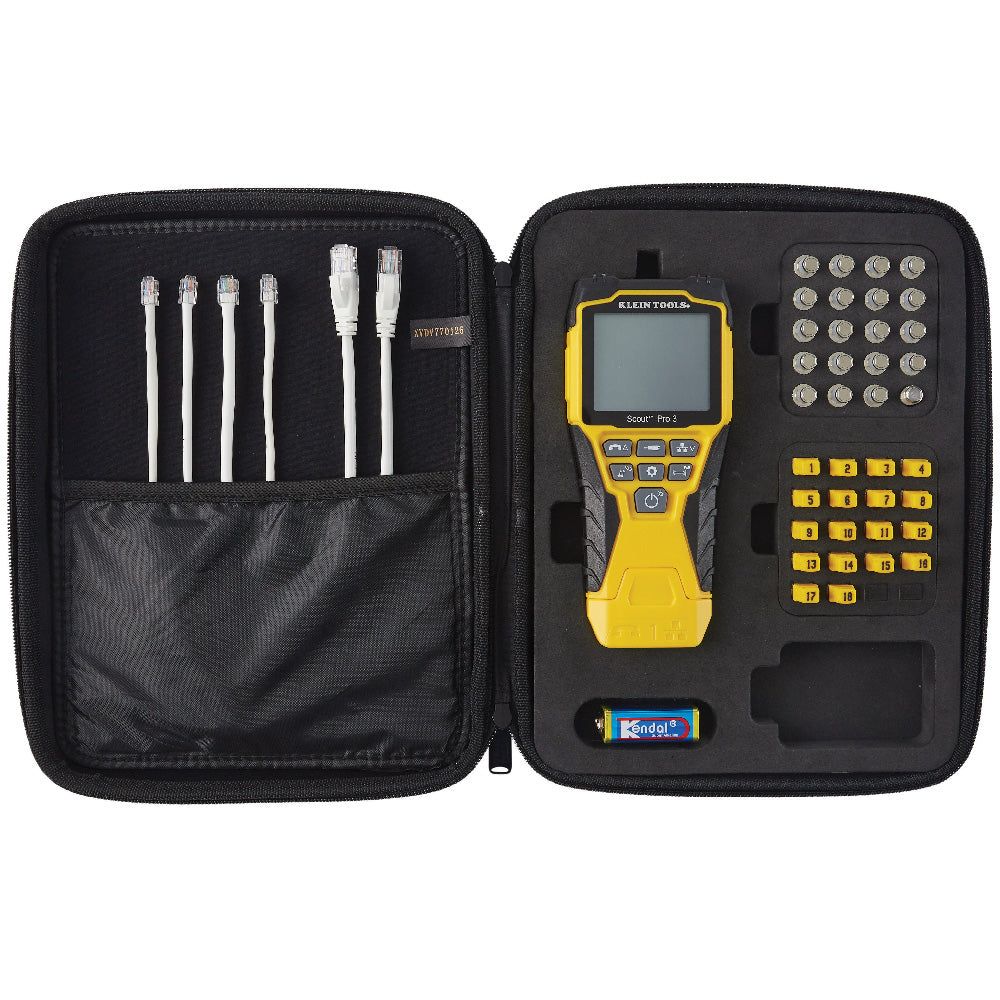

  • Includes a 9V battery and convenient carrying case
Specifications
Type Twisted Pair, DATA, Voice, LAN, and Coaxial
Application Cable Testing
Special Features Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type DATA: Shielded or Unshielded CAT3, CAT5E, CAT6, CAT6A, CAT7;
COAXIAL: RG59, RG6/6Q
Overall Length 7" (17.8 cm)
Overall Height 3.2" (8 cm)
Overall Width 1.5" (3.8 cm)
Material Plastic and Metal
Test-n-Map ID Remotes 1 Self-Storing
Location ID 18 RJ45 Data and 18 F-Coax Locator Remotes

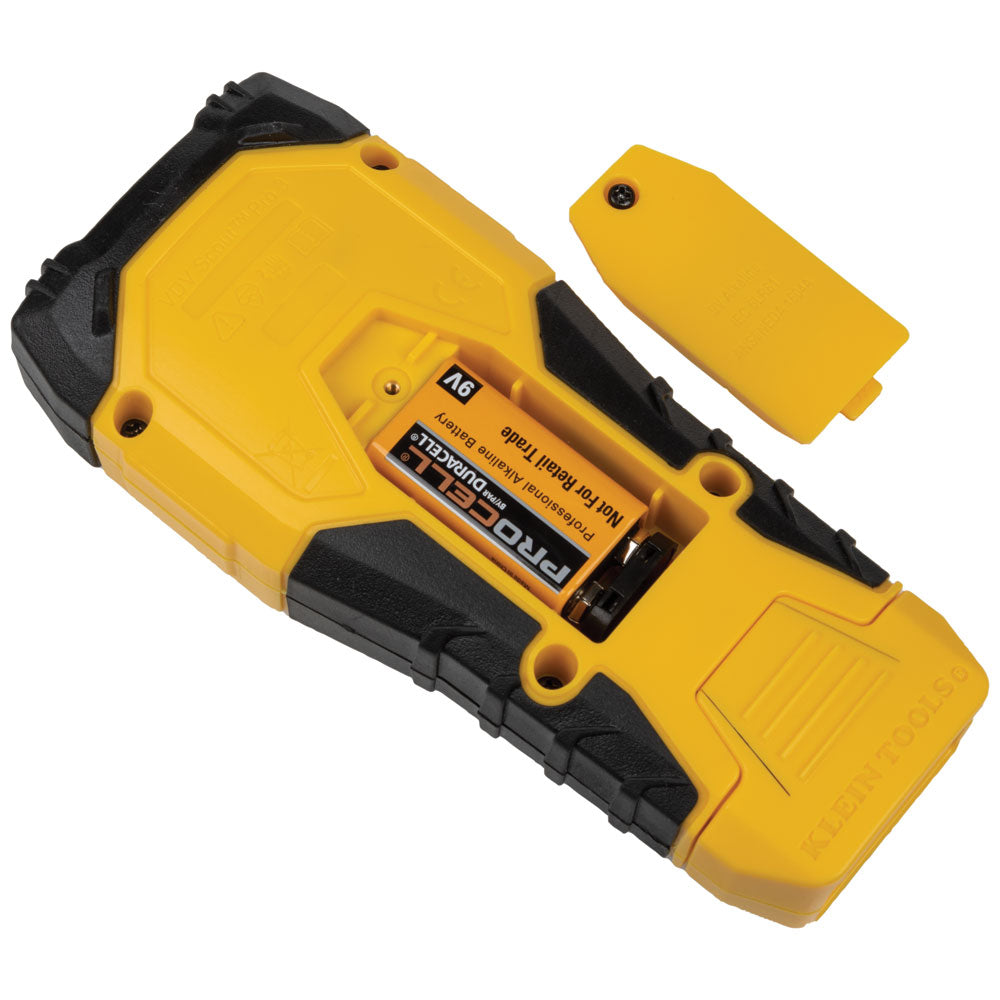

Batteries 9V Alkaline
Battery Life Active: 50 hours
Drop Protection 2 meters
Supported Remotes 18
Connection & Adapter Types RJ11, RJ12, RJ45, Coax F
Display Backlit LCD
Multiple Style Tone Generator Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately

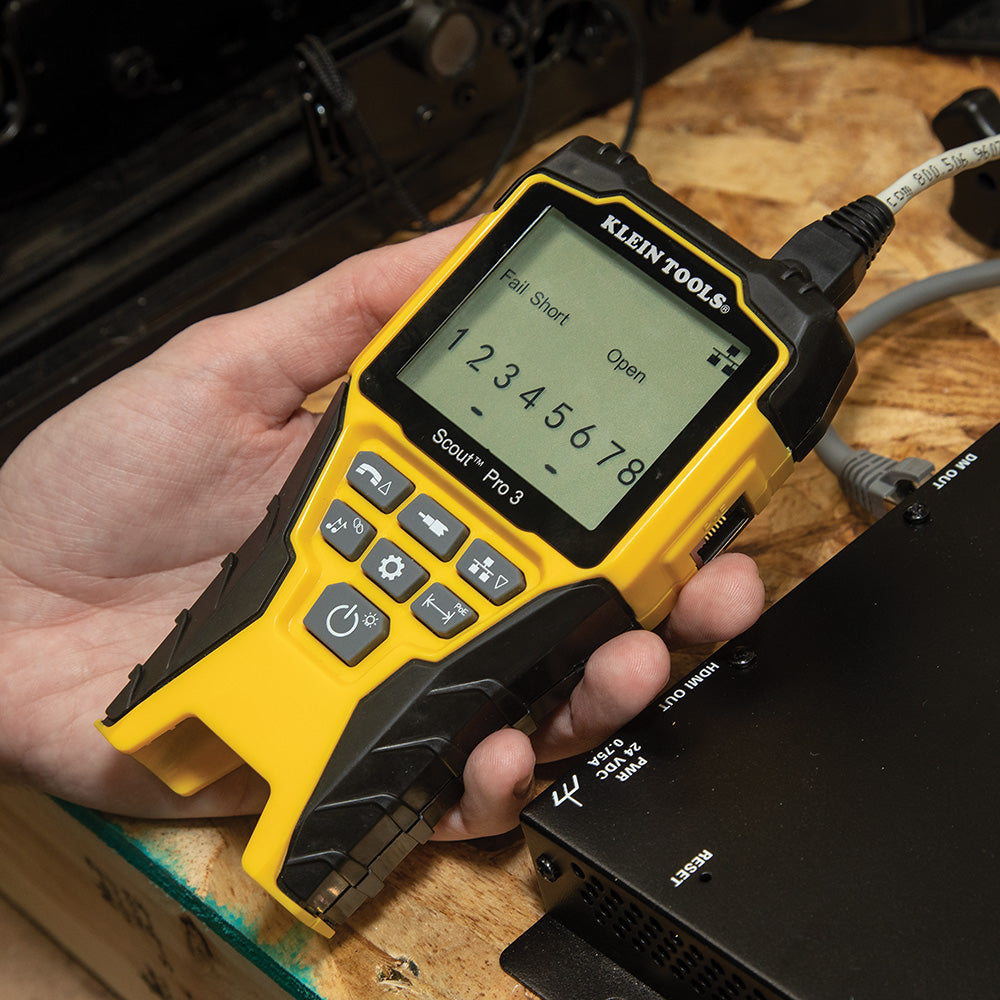

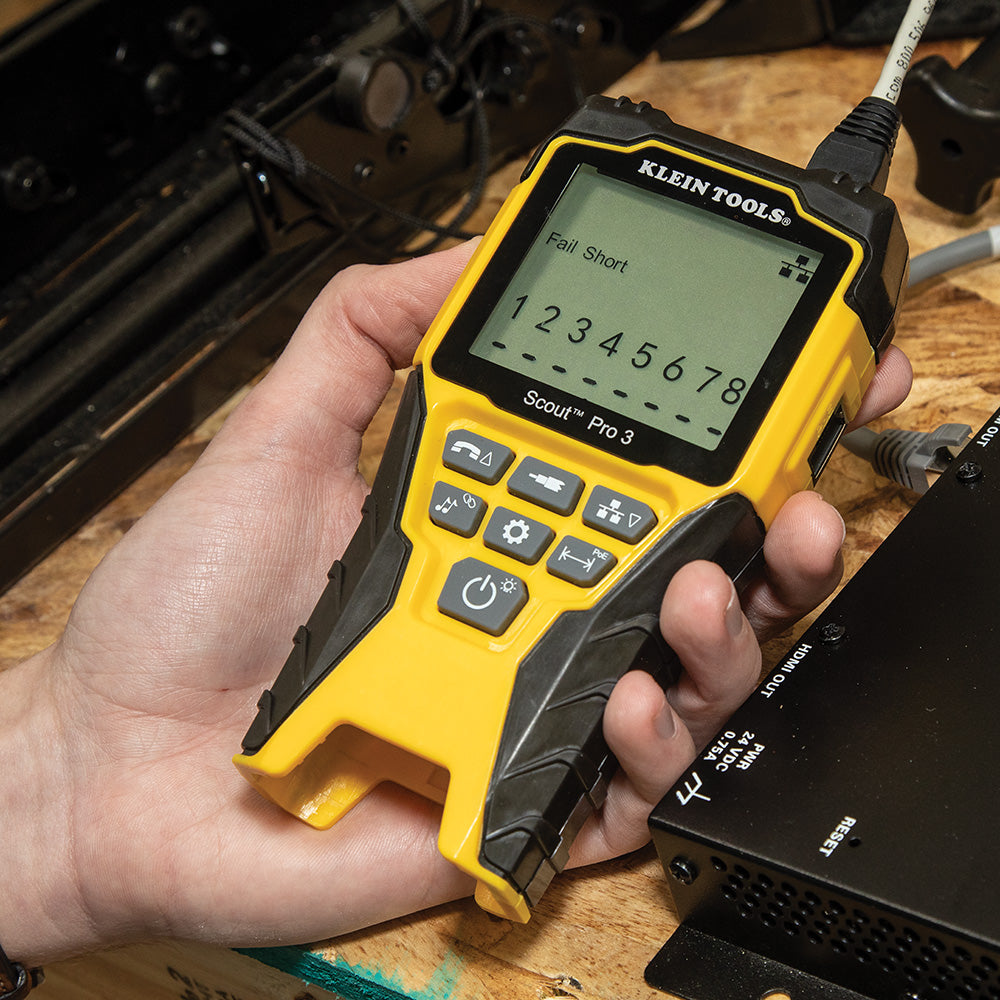

Faults Detected Open, Short, Miswire
Test & Measure Types Ethernet, Data, Coaxial
Accuracy Length Measurement: +/- 5% (ft) or 5% (m)

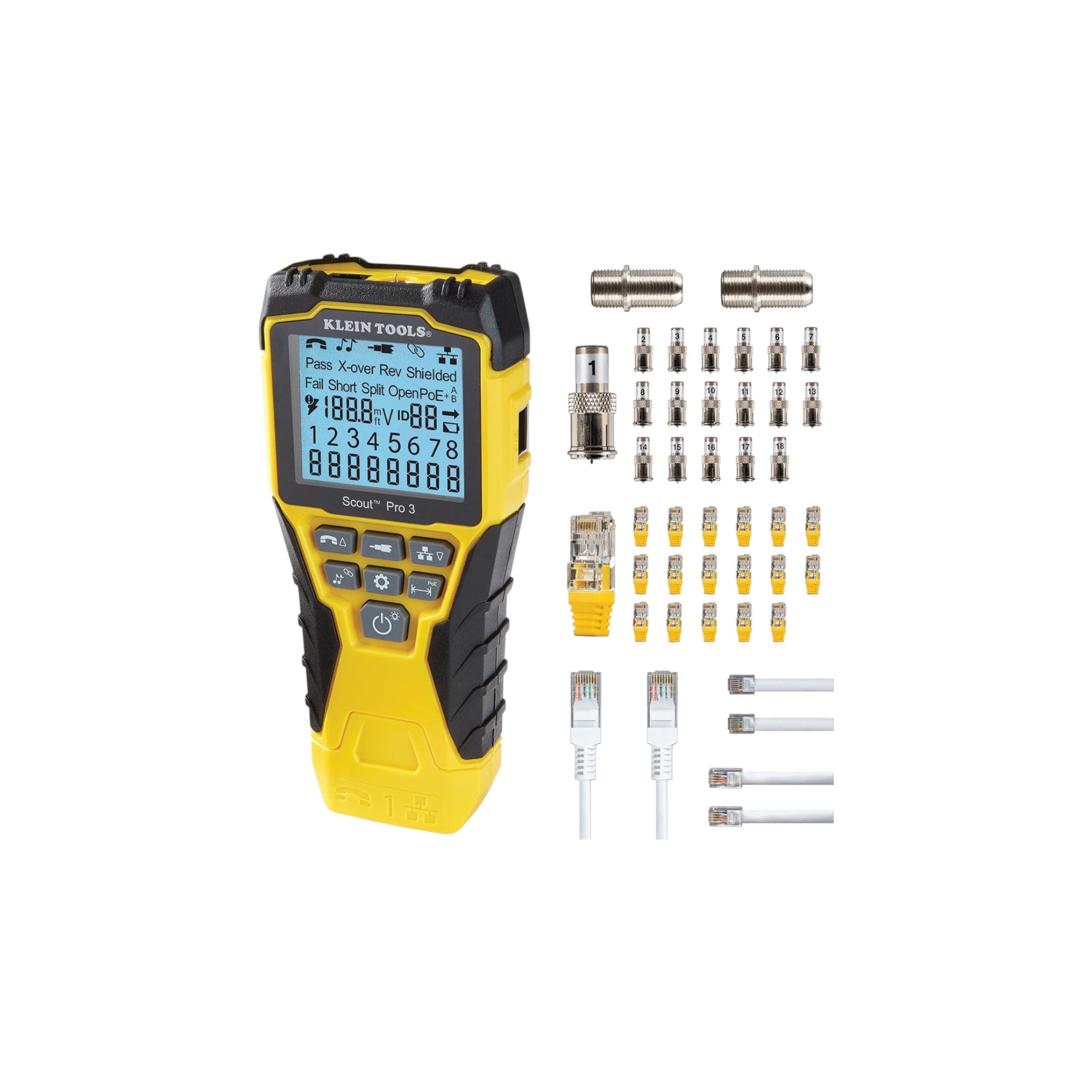

Included Items Tester,
Self-storing Test + Map™ Remote (#1),
18 RJ45 LAN Locator Remotes,
18 F Coax Locator Remotes,
2 Coaxial Barrel Adapters (female-to-female),
2 RJ45 Jumper Cables (6''),
2 RJ11 Jumper Cables,
2 RJ12 Jumper Cables,
Carrying Case,
1 x 9V Battery
Standard CE
Weight 1.2 lb (0.5 kg)
UPC 092644583261
Brochure

Brochure

Instruction Manual



Installation Layout 3D (DWG).
